| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Features | |
| Interface | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Resolution | |
| Sensing Temperature | |
| Sensor Type | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage | |
| Test Condition | |
| Voltage |
The MLX90614ESF-BCC-000-TU from Melexis is a digital, infrared (IR) temperature sensor designed for non-contact temperature measurements. It features a wide operating temperature range of -40°C to 85°C and a sensing temperature range from -70°C to 380°C.
This sensor provides high accuracy with a typical value of ±0.5°C within a specified test condition. It offers a resolution of 16 bits and communicates via SMBus and PWM digital interfaces. The device operates on a voltage range of 2.6V to 3.6V and can be adapted for 8V to 16V applications. It also includes a sleep mode for reduced power consumption.

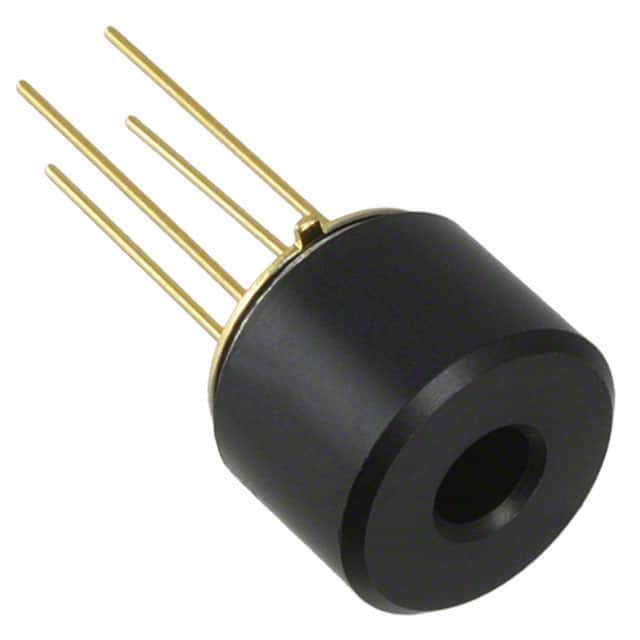

Packaged in a TO-39 metal can, the MLX90614ESF-BCC-000-TU is designed for through-hole mounting. Its small size and ease of integration make it suitable for various applications requiring precise non-contact temperature monitoring.
Key specifications include a sensor temperature range of -40°C to 125°C and an object temperature range of -70°C to 380°C, with high accuracy calibration available. The device supports multiple sensors on a common two-wire interface, allowing for multi-zone temperature control.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.01 | $1.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 85°C
-70°C to 380°C
±0.5°C (±4°C)
PWM, SMBus
2.6V to 3.6V
TO-39-4
Through Hole
