| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,386 pcs
|
7386 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
960 pcs
|
960 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Features | |
| Measurement Resolution | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Resolution | |
| Sensing Temperature | |
| Sensor Temperature - Local | |
| Sensor Temperature - Remote | |
| Sensor Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Test Condition | |
| Voltage |

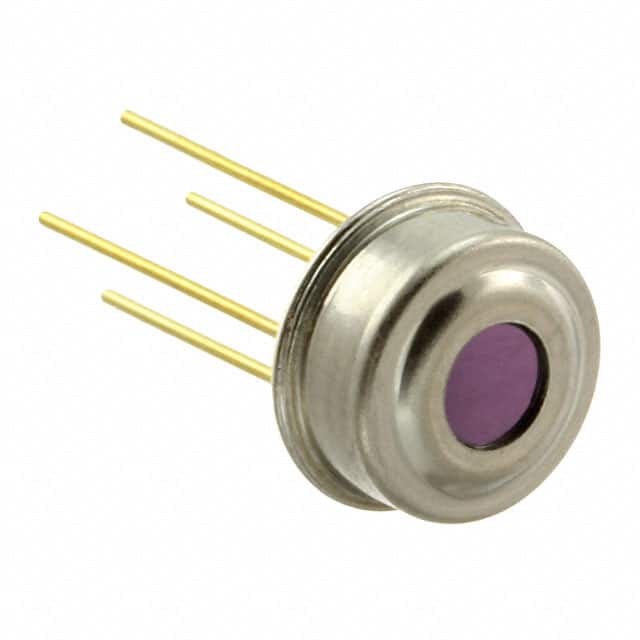

The Melexis MLX90614ESF-BAA-000-TU is a digital infrared temperature sensor designed for non-contact temperature measurements. It features a wide operating temperature range of -40°C to 85°C for the sensor and -70°C to 380°C for the object being measured.
This sensor boasts high accuracy of ±0.5°C and a measurement resolution of 0.02°C. It provides both PWM and SMBus compatible digital interfaces for easy integration into various systems. The device is available in a compact TO-39 package and supports through-hole mounting.
Key features include a sleep mode for reduced power consumption and factory calibration for reliable performance. Applications include high-precision non-contact temperature measurements in automotive, industrial, and home appliance sectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.01 | $1.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range for the sensor is -40°C to 85°C.
The accuracy of the sensor is ±0.5°C.
It offers PWM and SMBus compatible digital interfaces.
The supply voltage is between 2.6V and 3.6V.
It is supplied in a TO-39-4 Metal Can package.
It is designed for through-hole mounting.
The remote sensing temperature range is -70°C to 380°C (IR).
