| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type | |
| Voltage |

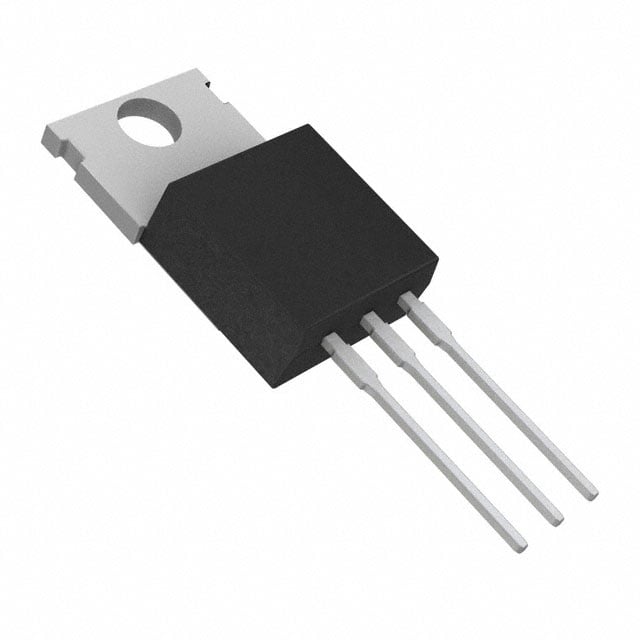

The MLP1N06CLG from On Semiconductor is a logic-level N-Channel MOSFET designed for power management applications. It features a clamped drain-to-source voltage of 62V and a continuous drain current of 1.8A.
This device is suitable for interfacing power loads to microprocessors due to its low threshold voltage. It includes integrated gate-to-source and gate-to-drain clamps for ESD and over-voltage protection, respectively, eliminating the need for external suppression components. The MOSFET operates within a junction temperature range of -50°C to 150°C and has a low Rds(on) of 590mOhm typical.
The MLP1N06CLG is housed in a TO-220 package, suitable for through-hole mounting. Its thermal resistance junction-to-case is 3.12 °C/W, and junction-to-ambient is 62.5 °C/W.
Key electrical characteristics include a continuous gate-to-source voltage of ±10Vdc and a total power dissipation of 40 Watts. The device also features controlled switching to minimize RFI.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
62 Vdc (clamped).
-50°C to 150°C.
TO-220-3, through-hole mounting.
1.8 A (self-limited).
40 Watts.
590 mOhm.
2.0 kV (Human Body Model).
