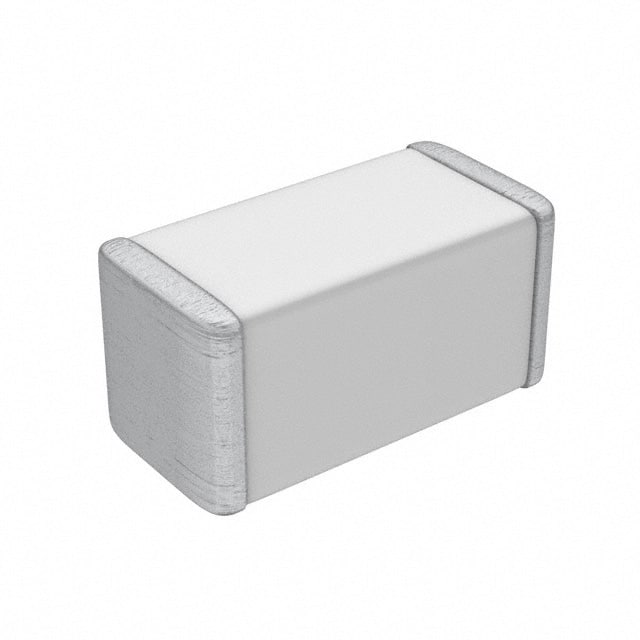

MLK1005S22NJT000 The TDK Corporation MLK1005S22NJT000 is a multilayer fixed inductor with a 22nH inductance and a 200mA current rating. It features a surface mount package.
Mfr Part #:

MLK1005S22NJT000

Available from 2 distributors
Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation MLK1005S22NJT000 is a multilayer fixed inductor with a 22nH inductance and a 200mA current rating. It features a surface mount package.
✓ Total Stock: 15,980 pcs
$ Price Range: $0.20

MLK1005S22NJT000 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
9,180 pcs
On Request
9180 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
6,800 pcs
On Request
6800 pcs On Request 1 On Request On Request 12+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MLK1005S22NJT000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Q @ Freq
Shielding
Supplier Device Package
Tolerance
Type
Width
View Similar Products (0)

MLK1005S22NJT000 Description

Short technical summary and product information.

The TDK Corporation MLK1005S22NJT000 is a multilayer fixed inductor designed for surface mount applications. It offers an inductance of 22 nH with a tight tolerance of ±5% and a current rating of 200 mA. The DC resistance is a maximum of 700 mOhm, and it achieves a Q factor of 7 at 100MHz. This unshielded inductor operates within a temperature range of -55°C to 125°C.



With its compact 0402 (1005 Metric) package size measuring 1.00mm in length, 0.50mm in width, and 0.60mm in height, the MLK1005S22NJT000 is suitable for space-constrained designs. The non-magnetic material construction ensures reliable performance in various electronic circuits. This component is classified under fixed inductors and is designed for general-purpose applications requiring stable inductance characteristics.



Key electrical characteristics include a nominal inductance of 22nH and a maximum DC resistance of 700mOhm. The operating frequency is up to 3.5GHz, making it suitable for RF applications. The component's multilayer construction contributes to its stability and performance. The surface mount type facilitates automated assembly processes.

MLK1005S22NJT000 Quick Information

Product Type: Fixed Inductor
Canonical Name: TDK Corporation MLK1005S22NJT000 Multilayer Fixed Inductor
Subcategory: Multilayer

MLK1005S22NJT000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MLK1005S22NJT000 Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

MLK1005S22NJT000 Features

  • Multilayer fixed inductor with 22nH inductance.
  • Rated for 200mA current with 700mOhm max DCR.
  • Compact 0402 (1005 Metric) surface mount package.
  • Operates from -55°C to 125°C temperature range.
  • Unshielded, non-magnetic construction.

MLK1005S22NJT000 Applications

  • Suitable for RF signal filtering.
  • Ideal for power supply circuits.
  • Used in compact electronic devices.
  • Applicable in high-frequency designs.

MLK1005S22NJT000 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the MLK1005S22NJT000?

The inductance is 22 nH.

What is the current rating for this inductor?

The current rating is 200 mA.

What is the maximum DC resistance (DCR) of the MLK1005S22NJT000?

The maximum DC resistance is 700 mOhm.

What is the package type for this inductor?

It is a 0402 (1005 Metric) surface mount package.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.
