Mfr Part #:

MLE-140-01-G-DV-P-TR

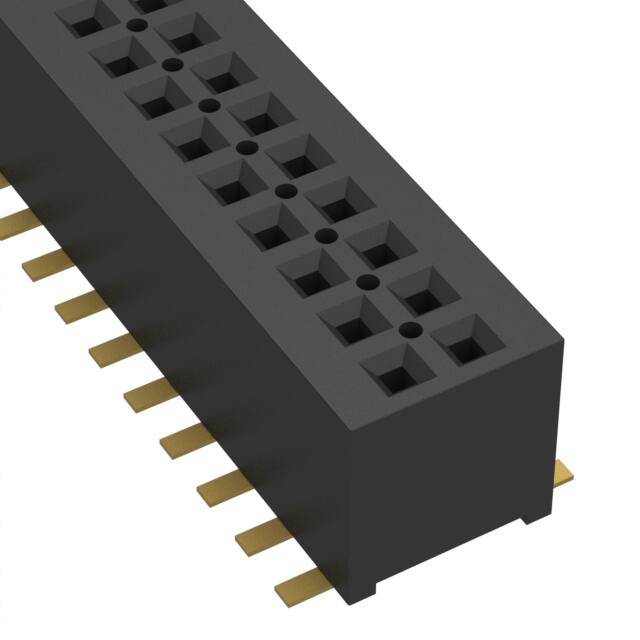

80 position board-to-board receptacle from Samtec with 1.00mm pitch and 2 rows of female sockets. Rated for 2.9A per contact and 310VAC, with surface mount termination.

✓ Total Stock: 144 pcs

$ Price Range: $4.00

MLE-140-01-G-DV-P-TR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Innova Technologies ✓ Non-Authorised Inventory information	144 pcs On Request	144 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MLE-140-01-G-DV-P-TR Description

Short technical summary and product information.

The MLE-140-01-G-DV-P-TR is a 80-position receptacle from Samtec designed for board-to-board applications. It features a 1.00mm pitch and 2 rows of gold-plated female sockets. The connector is rated for 2.9A per contact and 310VAC, making it suitable for compact electronic designs. Push-pull fastening and a pick and place feature aid in automated assembly. The operating temperature range is -55°C to 125°C. The part is supplied in tape and reel packaging and is RoHS3 compliant.

MLE-140-01-G-DV-P-TR Quick Information

Product Type: Receptacle

Series: MLE

Canonical Name: MLE-140-01-G-DV-P-TR by Samtec — 80 Position Receptacle, 1.00mm Pitch, Surface Mount

Subcategory: Board to Board Receptacle

MLE-140-01-G-DV-P-TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MLE-140-01-G-DV-P-TR Estimated Pricing

Qty	Low	High
1,000+	$4.00	$4.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

MLE-140-01-G-DV-P-TR Features

80 positions with 2 rows at 1.00mm pitch.
Rated for 2.9A per contact and 310VAC.
Surface mount with solder termination.
Gold contact finish for reliable connections.
Pick and place feature for automated assembly.

MLE-140-01-G-DV-P-TR Applications

Used in high-density board-to-board connections.
Suitable for compact electronic devices.
Ideal for automated assembly processes.

MLE-140-01-G-DV-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions?

80 positions.

What is the pitch?

1.00mm.

What is the current rating?

2.9A per contact maximum.

What is the voltage rating?

310VAC maximum.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Gold with 0.25µm thickness.

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Samtec Inc.
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Type	Female Socket
Current Rating (Amps)	2.9A per Contact
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	3.30mm (0.130")
Lead Spacing	1.00mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	1.00mm (0.039")
Row Spacing	0.039" (1.00mm)
SVHC Present	Not Present
Style	Board to Board
Tape & Reel	Yes
Tape/Reel Status	Tape & Reel
Termination	Solder
Termination Style	Solder
Voltage Rating	310VAC
