| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Voltage | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Type | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

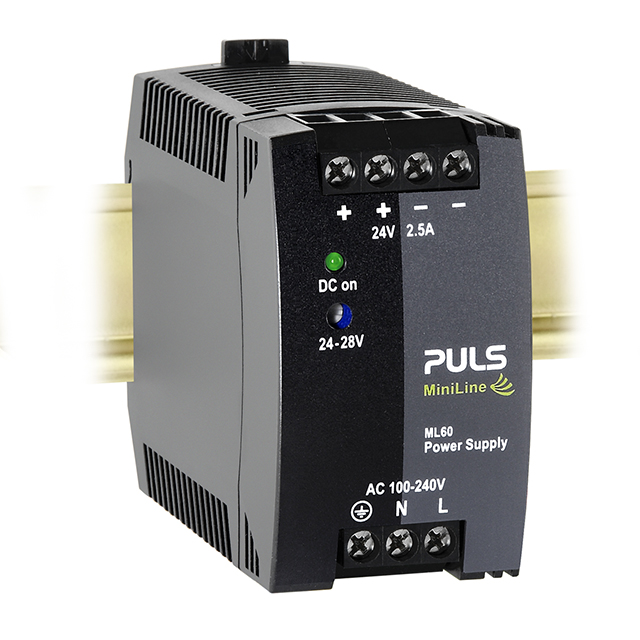

The PULS ML60.241 is a MiniLine-2 series single-phase AC/DC power supply delivering 24V nominal output at 2.5A (60W). The output voltage is adjustable from 24V to 28V, accommodating a range of load requirements. With a universal AC input range of 85-264VAC and DC input capability (88-375Vdc), it is suitable for global industrial applications.
Electrical performance includes typical efficiency of 89.7% at 230Vac, low output ripple below 50mVpp, and hold-up time of 107ms at 230Vac. The unit features active power factor correction (0.58 at 120Vac, 0.5 at 230Vac) and low inrush current. It operates at full power from -10°C to +60°C, with derating of 1.5W/°C from +60°C to +70°C.
Mechanically, the power supply has a compact footprint of 45mm width, 75mm height, and 91mm depth, weighing 250g. It is designed for DIN rail mounting. The unit includes features such as adjustable output, load sharing capability, and universal input.
Compliance includes approvals from ABS, CSA, DNV GL, EAC, IEC, NEC, and UL, meeting standards UL 508, UL 60950-1, Class I Div 2, and IEC 61010-2-201. It is suitable for ITE (commercial) applications. Accessories include the MLY10.241 redundancy module, UF20.241 buffer module, and ZM3.WALL wall mount bracket.
| Qty | Low | High |
|---|---|---|
| 1+ | $130.50 | $130.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal output voltage is 24V DC, adjustable from 24V to 28V.
The operational temperature range is -10°C to +70°C. Full power is available from -10°C to +60°C, with derating of 1.5W/°C from +60°C to +70°C.
The ML60.241 is listed as RoHS3 Compliant, but this data is unverified and has low confidence.
The AC input voltage range is 85VAC to 264VAC, and DC input range is 88Vdc to 375Vdc (with derating below 110Vdc).
It has approvals from ABS, CSA, DNV GL, EAC, IEC, NEC, and UL, meeting standards including UL 508, UL 60950-1, Class I Div 2, and IEC 61010-2-201.
