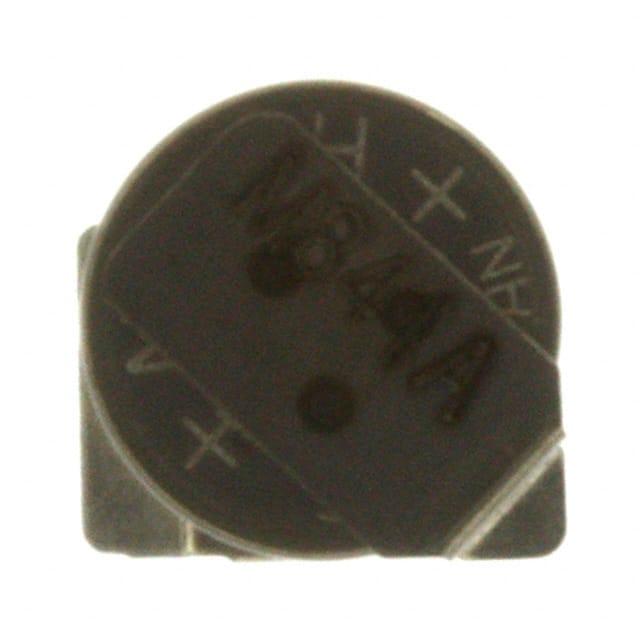

ML414H IV01E The Seiko Instruments ML414H IV01E is a rechargeable lithium battery with a nominal voltage of 3V and a capacity of 1mAh. It features SMD termination and is Pb-free reflowable.
Mfr Part #:

ML414H IV01E

Available from 1 distributors
Mfr Name: Seiko Instruments
Seiko Instruments
The Seiko Instruments ML414H IV01E is a rechargeable lithium battery with a nominal voltage of 3V and a capacity of 1mAh. It features SMD termination and is Pb-free reflowable.
✓ Total Stock: 7,450 pcs
$ Price Range: $0.99

ML414H IV01E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
7,450 pcs
On Request
7450 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ML414H IV01E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Battery Cell Size
Battery Chemistry
Capacity
Diameter
Height
Lead Spacing
Termination Style
Voltage
Weight
View Similar Products (0)

ML414H IV01E Description

Short technical summary and product information.

The Seiko Instruments ML414H IV01E is a rechargeable, coin-type lithium battery designed for applications requiring a compact and reliable power source. It offers a nominal voltage of 3V and a nominal capacity of 1mAh, with a voltage range of 3.1V to 2.0V. The battery has an internal impedance of 600Ω.



Key features include its Pb-free reflowable capability, with a peak reflow temperature resistance of 260°C, and high-temperature heat resistance. The ML414H IV01E is suitable for backup power supplies for Real-Time Clocks (RTC) and memory, as well as for use in portable electronic devices such as cellphones, digital still cameras, MP3 players, and PDAs.



Mechanically, the battery has a diameter of 4.8mm and a height of 1.4mm, with a weight of 0.07g. It utilizes an SMD (SMT) Tab termination style for surface mount assembly. The charge and discharge characteristics are specified, with charging via constant current/constant voltage (3.1V, max.30μA, 72hr, RT) and discharging via constant current (5μA, cov.= 2.0V).



This battery is RoHS3 compliant and REACH unaffected, indicating adherence to environmental regulations. Its increased capacity compared to older series makes it a more efficient power solution for modern electronic designs.

ML414H IV01E Quick Information

Product Type: Rechargeable Battery
Canonical Name: Seiko Instruments ML414H IV01E Rechargeable Lithium Battery
Subcategory: Lithium

ML414H IV01E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-free reflowable

ML414H IV01E Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

ML414H IV01E Features

  • Rechargeable lithium coin-type battery.
  • Nominal voltage of 3V.
  • Capacity of 1mAh.
  • Pb-free reflowable up to 260°C.
  • SMD (SMT) Tab termination style.

ML414H IV01E Applications

  • Backup power for RTC.
  • Memory backup applications.
  • Used in cellphones.
  • Suitable for digital cameras.
  • Power source for MP3 players.

ML414H IV01E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the nominal voltage of the ML414H IV01E battery?

The nominal voltage is 3V.

What is the capacity of the ML414H IV01E battery?

The nominal capacity is 1mAh.

What is the battery chemistry of the ML414H IV01E?

The battery chemistry is Lithium.

What is the internal impedance of this battery?

The internal impedance is 600Ω.

What are the dimensions of the ML414H IV01E battery?

The diameter is 4.8mm and the height is 1.4mm.

Is the ML414H IV01E battery Pb-free reflowable?

Yes, it is Pb-free reflowable and can withstand a peak temperature of 260°C.

What termination style does the ML414H IV01E battery use?

It uses an SMD (SMT) Tab termination style.
