| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Features | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Stud | |
| Tab Thickness | |
| Terminal Style | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Width | |
| Wire Gauge |

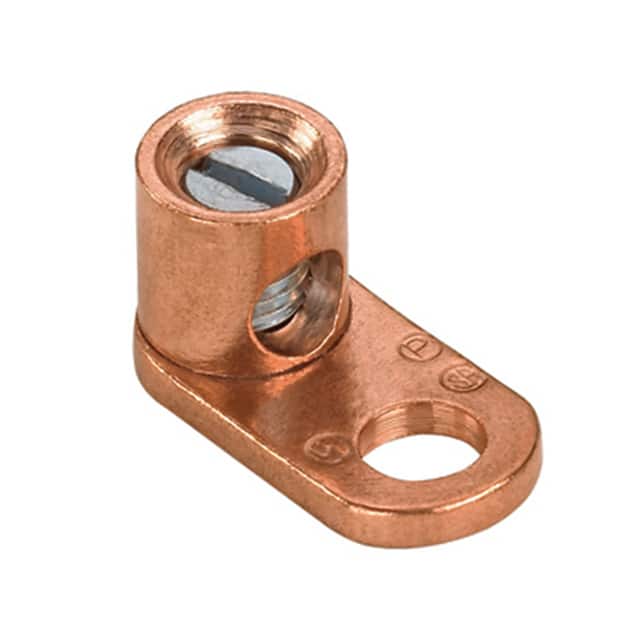

The Panduit ML4-CY is a copper mechanical lug from the ML series, designed for grounding and bonding applications. It accepts 4-14 AWG copper wire and terminates with a screw onto a 1/4 inch stud. The lug is non-insulated and features a free hanging (in-line) mounting style. Dimensions include a length of 28.19mm, width of 13.72mm, and tab thickness of 2.29mm. The ML4-CY is cULus listed for safety compliance. It is suitable for use in power distribution panels, electrical enclosures, and industrial wiring systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.82 | $3.82 |
| 10+ | $3.46 | $3.46 |
| 50+ | $3.38 | $3.38 |
| 100+ | $3.31 | $3.31 |
| 200+ | $3.22 | $3.22 |
| 500+ | $3.15 | $3.15 |
| 1,000+ | $3.08 | $3.08 |
| 2,500+ | $2.99 | $2.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ML4-CY accepts 4-14 AWG copper wire.
The stud size is 1/4 inch.
The mounting type is free hanging (in-line).
No, the ML4-CY is non-insulated.
The termination is screw type.
The length is 28.19mm, width is 13.72mm, and tab thickness is 2.29mm (0.090 inches).
The ML4-CY is made of copper (from the ML series copper mechanical lugs datasheet).
