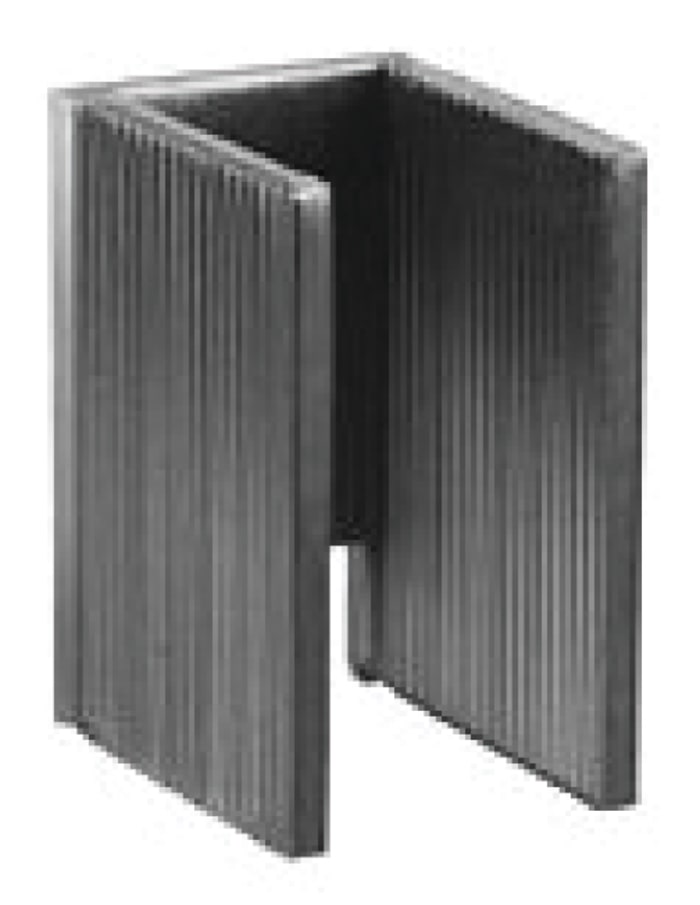

ML26AAG The Aavid ML26AAG is an aluminium heatsink designed for TO-220 devices. It offers a thermal resistance of 17.9°C/W and features a black anodized finish.
Mfr Part #:

ML26AAG

Available from 1 distributors
Mfr Name: Aavid, Thermal Division of Boyd Corporation
Aavid, Thermal Division of Boyd Corporation
The Aavid ML26AAG is an aluminium heatsink designed for TO-220 devices. It offers a thermal resistance of 17.9°C/W and features a black anodized finish.
✓ Total Stock: 10 pcs
$ Price Range: $2.00

ML26AAG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ML26AAG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Finish
Height
Length
Material
Mounting Type
Storage Temperature
Tape & Reel
Thermal Resistance
Width
View Similar Products (0)

ML26AAG Description

Short technical summary and product information.

The Aavid ML26AAG is a board-level heatsink constructed from aluminium with a black anodized finish. Designed specifically for TO-220 package semiconductors, it features serrated fins for increased cooling capacity and a channel style for efficient heat dissipation.



This heatsink has a thermal resistance of 17.9°C/W, making it suitable for managing heat in electronic components. Its dimensions are 25mm in length, 15mm in width, and 20mm in height. The mounting orientation is vertical, and it utilizes PCB through-hole fastening for secure integration onto printed circuit boards.



The base of the heatsink is notched to accommodate device leads when mounted horizontally. This design ensures compatibility and ease of installation with TO-220 devices, contributing to reliable thermal management in various electronic applications.

ML26AAG Quick Information

Product Type: Heatsink
Canonical Name: ML26AAG Heatsink
Subcategory: Thermal Accessories

ML26AAG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ML26AAG Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

ML26AAG Features

  • Aluminium heatsink for TO-220 devices.
  • 17.9°C/W thermal resistance for efficient cooling.
  • Black anodized finish for durability.
  • Vertical mount orientation with PCB through-hole.
  • Extruded channel style with serrated fins.

ML26AAG Applications

  • Ideal for TO-220 semiconductor cooling.
  • Enhances thermal performance in electronics.
  • Suitable for board-level thermal management.
  • Facilitates heat dissipation in compact designs.

ML26AAG FAQs

5 frequently asked questions generated from this part’s specifications.
What is the thermal resistance of the ML26AAG heatsink?

The thermal resistance of the ML26AAG heatsink is 17.9°C/W.

What package type is the ML26AAG heatsink compatible with?

The ML26AAG heatsink is compatible with TO-220 package types.

What are the dimensions of the ML26AAG heatsink?

The ML26AAG heatsink has dimensions of 25mm in length, 15mm in width, and 20mm in height.

How is the ML26AAG heatsink mounted?

The ML26AAG heatsink is mounted using PCB through-hole fastening.

What is the finish of the ML26AAG heatsink?

The ML26AAG heatsink has a black anodized finish.
