| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
66 pcs
|
66 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Chemistry | |
| Capacity | |
| Diameter | |
| Height | |
| Lead Style | |
| Operating Temperature Range | |
| Termination Style | |
| Voltage | |
| Weight |

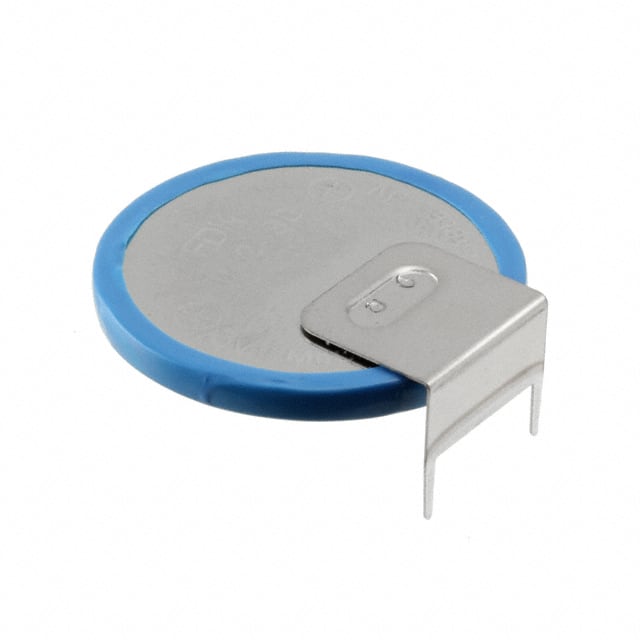

The FDK ML2430-HS1 is a rechargeable lithium coin cell battery designed for applications requiring a compact, reliable power source. It offers a nominal voltage of 3V and a nominal capacity of 100mAh, with a standard charge/discharge current of 0.5mA. The battery supports a maximum continuous discharge current of 10mA and pulse discharge up to 20mA. It has a charge voltage of 3.1V (constant voltage) with a tolerance of ±0.15V, and a high-temperature charge voltage of 2.95V. The operating temperature range is -20°C to 60°C. The battery measures 24.5mm in diameter and 3.0mm in height, weighing 4.1g. It features a PC pin (horizontal mount) termination style, making it suitable for PCB mounting. The ML2430-HS1 offers excellent cycle life: 3000 cycles at 5% depth of discharge and 500 cycles at 20% depth of discharge. This battery is RoHS3 compliant and REACH unaffected, though compliance status should be verified with the manufacturer.
3V.
100mAh.
-20°C to 60°C.
PC Pin (Horizontal Mount).
The part is listed as RoHS3 Compliant, but this is unverified and there is a conflict with another source. Verify with manufacturer.
3000 cycles at 5% depth of discharge, 500 cycles at 20% depth of discharge.
3.1V constant voltage with ±0.15V tolerance.
