| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Lead Spacing | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Type | |
| Voltage |
The MKW40Z160VHT4R from NXP Semiconductors is a versatile RF Transceiver IC that integrates a microcontroller, making it suitable for wireless communication applications. This device operates in the 2.4GHz frequency band and supports multiple protocols including 802.15.4, Bluetooth v4.1, and ZigBee.
Key electrical characteristics include a maximum data rate of 1Mbps, receiver sensitivity of -102dBm, and an output power of 5dBm. It offers a wide operating voltage range from 1.45V to 3.6V and consumes current between 6.5mA and 15.4mA. The integrated MCU provides 160kB of Flash memory and 20kB of SRAM, along with 28 GPIO pins for flexible interfacing.

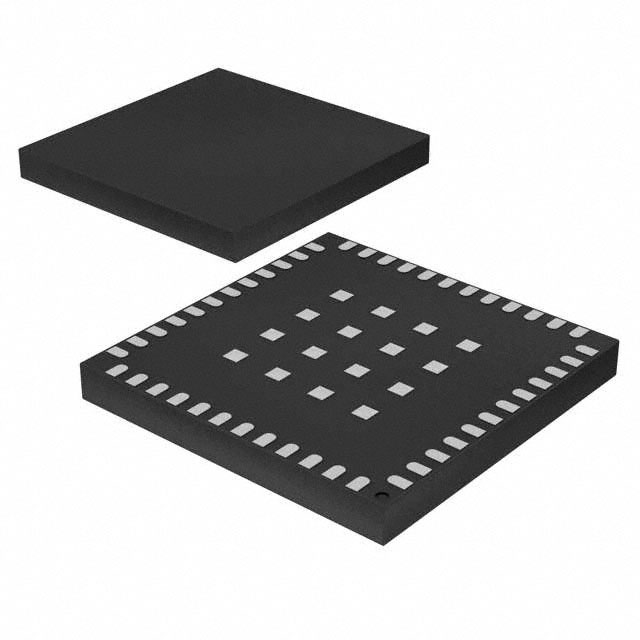

Designed for surface mounting, the MKW40Z160VHT4R comes in a 64-VFLGA package measuring 7x7mm. It operates reliably within a temperature range of -40°C to 85°C. The component is specified as RoHS3 Compliant, with an MSL of 1, indicating unlimited moisture sensitivity. Its serial interfaces include I²C, SPI, and UART, facilitating integration into various embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.43 | $3.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.45V to 3.6V.
It is supplied in a 64-VFLGA (7x7) package.
The operating temperature range is -40°C to 85°C.
The RoHS status is RoHS3 Compliant.
It supports 802.15.4, Bluetooth v4.1, and ZigBee protocols.
The maximum data rate is 1Mbps.
The receiver sensitivity is -102dBm.
