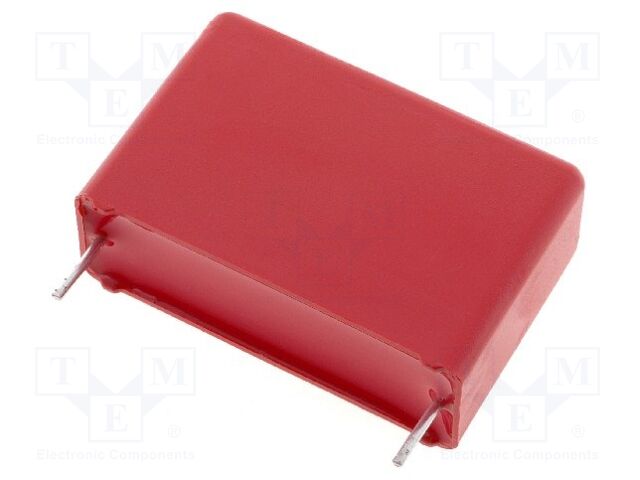

This WIMA MKP1F036805F00KSSD is a high-quality polypropylene film capacitor. It offers a capacitance value of 0.68µF with a tolerance of ±10%, suitable for various electronic applications.
The capacitor is rated for a maximum operating voltage of 250V DC and 180V AC. It features low ESR and low dielectric loss, making it ideal for high frequency and impulse circuits. The operating temperature range is from -55°C to 100°C.
Designed for Through-Hole Technology (THT) mounting, this component has a terminal pitch of 22.5mm and a lead length of 6mm. The body dimensions are 8.5x18.5x26.5mm. The material is flame retardant with a flammability rating of UL94V-0.
This capacitor is supplied in a standard package of 500 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.27 | $1.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 0.68µF.
The capacitor is rated for 250V DC and 180V AC.
The tolerance is ±10%.
The operating temperature range is -55°C to 100°C.
It is a THT (Through-Hole Technology) mounting type.
The standard package quantity is 500 pieces.
