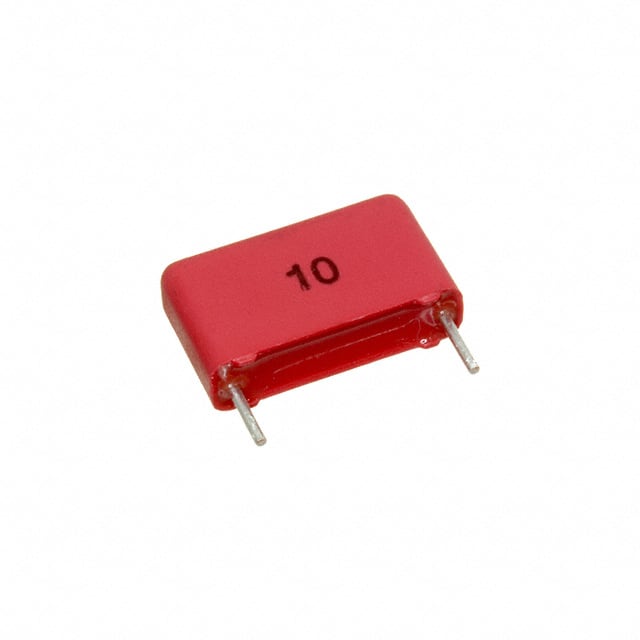

MKP1F031004B00KSSD This WIMA MKP 10 series film capacitor offers 0.1 µF capacitance with ±10% tolerance, rated for 250V DC. It features a radial through-hole package with 15mm lead spacing and is suitable for high pulse and DV/DT applications.
Mfr Part #:

MKP1F031004B00KSSD

Available from 2 distributors
Mfr Name: WIMA
WIMA
This WIMA MKP 10 series film capacitor offers 0.1 µF capacitance with ±10% tolerance, rated for 250V DC. It features a radial through-hole package with 15mm lead spacing and is suitable for high pulse and DV/DT applications.
✓ Total Stock: 3,142 pcs
$ Price Range: $0.23 - $0.78

MKP1F031004B00KSSD Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,572 pcs
On Request
1572 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1,570 pcs
On Request
1570 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MKP1F031004B00KSSD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
Capacitance
Dielectric Material
Height
Lead Spacing
Lead Style
Length
Mounting Type
Operating Temperature
Tape & Reel
Termination
Termination Style
Tolerance
Voltage Rating
Width
View Similar Products (0)

MKP1F031004B00KSSD Description

Short technical summary and product information.

The WIMA MKP1F031004B00KSSD is a metallized polypropylene film capacitor from the MKP 10 series, designed for pulse applications. It has a capacitance of 0.1 µF with ±10% tolerance and a rated DC voltage of 250V. The dielectric is polypropylene (PP) with double-sided metallized electrodes, offering self-healing and very low dissipation factor. The operating temperature range is -55°C to 110°C, with voltage derating above 85°C for DC voltages.



The capacitor is housed in a solvent-resistant, flame-retardant plastic case with epoxy resin seal, meeting UL 94 V-0 flammability standards. The termination style is PC pins with a lead spacing of 15.00mm, and the package is radial through-hole. Dimensions are 18.00mm length, 5.00mm width, and 11.00mm height.



Typical applications include switch mode power supplies, lighting, audio/video equipment, and automotive electronics. The component is AEC-Q200 qualified and RoHS compliant according to 2015/863/EU. It is suitable for high pulse and DV/DT circuits, with a dielectric absorption of 0.05% and a failure rate of 1 fit under specified conditions.

MKP1F031004B00KSSD Quick Information

Product Type: Film Capacitor
Series: MKP 10
Canonical Name: WIMA MKP 10 Series 0.1 µF, 250V DC, ±10%, Polypropylene Film Capacitor, Radial Through Hole
Subcategory: Polypropylene Film Capacitor

MKP1F031004B00KSSD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MKP1F031004B00KSSD Estimated Pricing

Qty Low High
1+ $0.78 $0.78
10+ $0.39 $0.39
100+ $0.35 $0.35
500+ $0.29 $0.29
1,000+ $0.28 $0.28
2,400+ $0.25 $0.25
4,800+ $0.24 $0.24
12,000+ $0.23 $0.23
26,400+ $0.23 $0.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

MKP1F031004B00KSSD Features

  • Metallized polypropylene film dielectric.
  • Rated for 250V DC operation.
  • Capacitance of 0.1 µF ±10%.
  • Radial through-hole package with 15mm lead spacing.
  • AEC-Q200 qualified for automotive applications.

MKP1F031004B00KSSD Applications

  • Ideal for high pulse and DV/DT circuits.
  • Used in switch mode power supplies.
  • Suitable for lighting and audio/video equipment.
  • Applicable in automotive electronics.

MKP1F031004B00KSSD FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of this capacitor?

0.1 µF.

What is the voltage rating?

250V DC.

What is the dielectric material?

Polypropylene (PP), metallized.

What is the tolerance?

±10%.

What is the package style?

Radial through-hole.

What is the operating temperature range?

-55°C to 110°C.

Is this capacitor AEC-Q200 qualified?

Yes, according to the datasheet.
