| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Dielectric Material | |
| ESR (Equivalent Series Resistance) | |
| FIT | |
| Features | |
| Height | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Pitch | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Life Time Expectancy | |
| Maximum Applicable Peak to Peak Ripple Voltage | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Self Inductance (LS) | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| Withstanding DC Voltage between terminals |

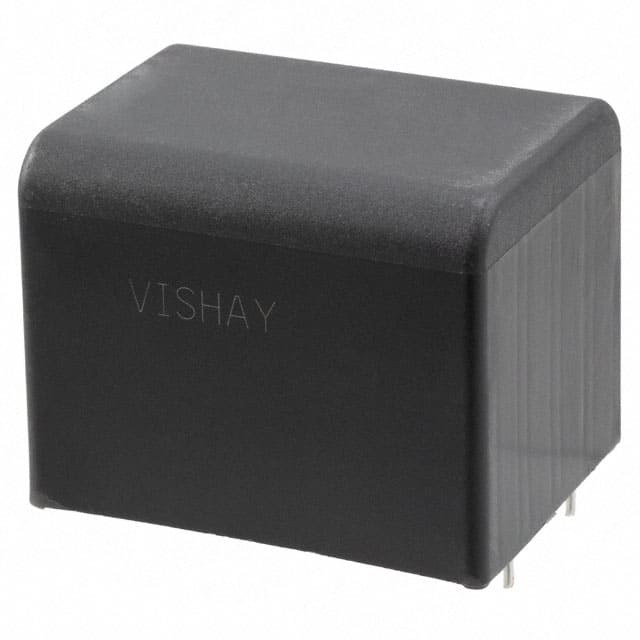

This Vishay Dale MKP1848C63012JY5 is an industrial-grade, metallized polypropylene DC-link film capacitor. It offers a capacitance of 30µF with a tight tolerance of ±5% and a high DC voltage rating of 1.2kV.
The capacitor features a through-hole mounting type with radial leads and a lead spacing of 52.50mm. It operates within a temperature range of -55°C to 105°C, with a rated temperature of 85°C. Key electrical characteristics include low ESR (5 mΩ) and low ESL, contributing to its high ripple current capability.
Designed for demanding applications, this capacitor is suitable for use in renewable energy inverters, UPS systems, battery chargers, and motor drives. Its construction utilizes a plastic case sealed with resin, which is flame retardant. The terminals are tinned wire, and the dielectric is a metallized polypropylene film.
With a long useful life expectancy of over 100,000 hours at 70°C and UNDC, and a low FIT rate, this capacitor is built for reliability. It meets IEC 61071 and IEC 60068 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 30 µF.
The rated DC voltage is 1200V (1.2kV).
The operating temperature range is up to 105°C.
The dielectric material is Metallized Polypropylene film.
The capacitance tolerance is ±5 %.
It uses through-hole mounting.
Key features include low ESR, low ESL, and long life.
