MKM14Z64ACHH5 The NXP Semiconductors MKM14Z64ACHH5 is a 32-bit microcontroller featuring an ARM Cortex-M0+ core operating at up to 50MHz. It offers 64KB of program flash memory and 16KB of RAM.
Mfr Part #:

MKM14Z64ACHH5

Available from 2 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MKM14Z64ACHH5 is a 32-bit microcontroller featuring an ARM Cortex-M0+ core operating at up to 50MHz. It offers 64KB of program flash memory and 16KB of RAM.
✓ Total Stock: 16,660 pcs
$ Price Range: $6.40

MKM14Z64ACHH5 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
14,700 pcs
On Request
14700 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
1,960 pcs
On Request
1960 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MKM14Z64ACHH5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
Voltage Reference
View Similar Products (0)

MKM14Z64ACHH5 Description

Short technical summary and product information.

The NXP Semiconductors MKM14Z64ACHH5 is a versatile 32-bit microcontroller based on the ARM Cortex-M0+ core, capable of operating at speeds up to 50MHz. This device is equipped with 64KB of program flash memory and 16KB of RAM, making it suitable for a range of embedded applications.



Key features include a wide operating voltage range from 1.71V to 3.6V, and an operating temperature range of -40°C to 85°C. The microcontroller supports multiple communication interfaces such as I2C, SPI, and UART/USART, along with various analog modules including a 16-bit SAR ADC and a 24-bit Sigma Delta ADC. It also incorporates system peripherals like a DMA controller and watchdog timers.

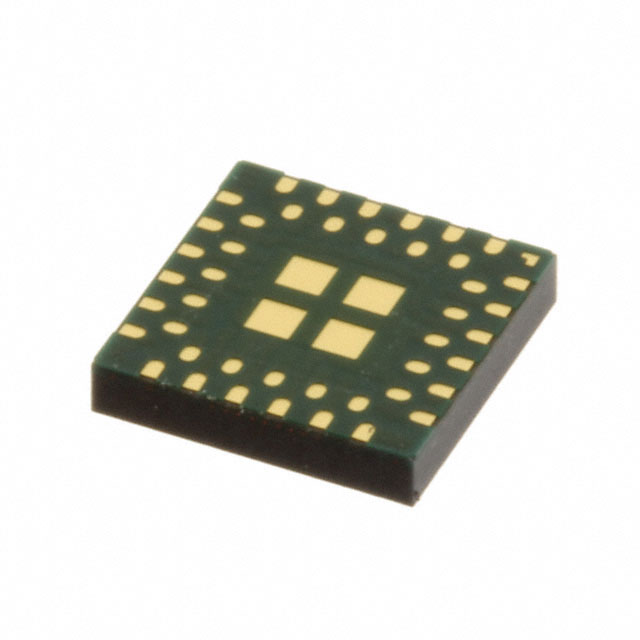

The MKM14Z64ACHH5 is available in a 44-MAPLGA (5x5) or 44-VFLGA exposed pad package, designed for surface mounting. Its robust feature set makes it a strong candidate for designs requiring efficient processing, flexible connectivity, and integrated analog capabilities.

MKM14Z64ACHH5 Quick Information

Product Type: Microcontroller
Canonical Name: MKM14Z64ACHH5 ARM Cortex-M0+ Microcontroller
Subcategory: Microcontrollers

MKM14Z64ACHH5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MKM14Z64ACHH5 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MKM14Z64ACHH5 Features

  • ARM Cortex-M0+ core at 50MHz.
  • 64KB program flash memory.
  • 16KB single access RAM.
  • Wide voltage range 1.71V to 3.6V.
  • Multiple communication interfaces.

MKM14Z64ACHH5 Applications

  • Suitable for embedded control systems.
  • Ideal for applications requiring low power.
  • Supports various sensor interfaces.
  • Flexible connectivity options.

MKM14Z64ACHH5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the MKM14Z64ACHH5?

The operating voltage range is 1.71 V to 3.6 V when the Analog Front End (AFE) is not used, and 2.7 V to 3.6 V when the AFE is used.

What is the operating temperature range for this microcontroller?

The operating temperature range is -40°C to 85°C.

What is the program memory size of the MKM14Z64ACHH5?

The program memory size is 64KB.

What is the RAM size available on this device?

The RAM size is 16KB.

What core processor does the MKM14Z64ACHH5 use?

It uses an ARM Cortex-M0+ core.

What communication interfaces are supported?

Supported communication interfaces include I2C, SPI, and UART/USART.

What is the package type for the MKM14Z64ACHH5?

The package is 44-MAPLGA (5x5) or 44-VFLGA Exposed Pad.
