Mfr Part #:

MKL27Z64VDA4

The NXP Semiconductors MKL27Z64VDA4 is a 32-bit microcontroller featuring an ARM Cortex-M0+ core operating at 48MHz. It offers 64KB of Flash memory and 16KB of SRAM.

✓ Total Stock: 87,712 pcs

$ Price Range: $6.40

MKL27Z64VDA4 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	78,780 pcs On Request	78780 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	8,932 pcs On Request	8932 pcs	On Request	1	On Request	On Request	15+	On Request	On Request

MKL27Z64VDA4 Description

Short technical summary and product information.

The NXP Semiconductors MKL27Z64VDA4 is part of the Kinetis KL27 series, optimized for cost-sensitive and battery-powered applications requiring low-power USB connectivity. This microcontroller is built around a 48 MHz ARM Cortex-M0+ core, providing a 32-bit processing architecture.

Key electrical specifications include 64KB of program Flash memory and 16KB of SRAM. It operates within a voltage range of 1.71V to 3.6V and has an operating temperature range of -40°C to 105°C. The device supports various peripherals such as DMA, I²S, PWM, WDT, I²C, FlexIO, SPI, UART/USART, and USB.

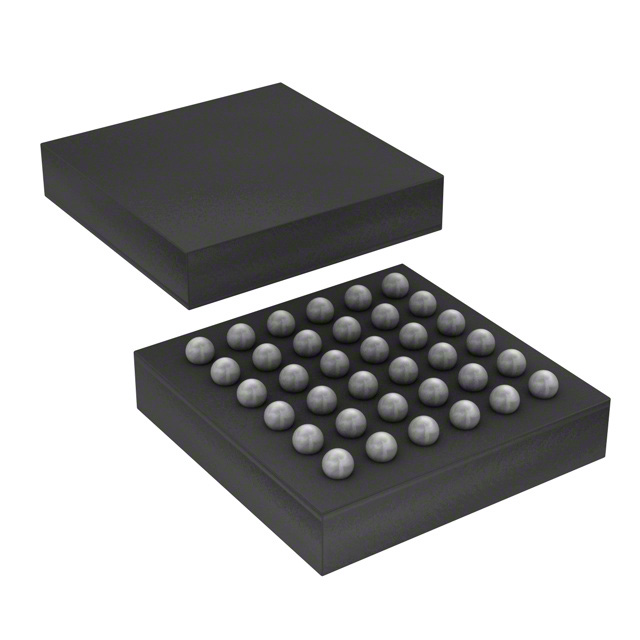

This microcontroller is supplied in a 36-XFBGA package with surface mount mounting type. It features an internal oscillator and offers a high-speed analog comparator with a 6-bit DAC. The device is designed for applications requiring efficient power consumption, with low power run mode current down to 46 µA/MHz and stop mode current at 1.68 µA.

MKL27Z64VDA4 Quick Information

Product Type: Microcontroller

Canonical Name: NXP Semiconductors Kinetis KL27 Microcontroller

Subcategory: Embedded

MKL27Z64VDA4 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MKL27Z64VDA4 Estimated Pricing

Qty	Low	High
1+	$6.40	$6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MKL27Z64VDA4 Features

32-bit ARM Cortex-M0+ core at 48MHz.
64KB program Flash and 16KB SRAM.
Low-power operation with USB connectivity.
Integrated peripherals including DMA, I2C, SPI, UART.
36-XFBGA surface mount package.

MKL27Z64VDA4 Applications

Suitable for battery-powered devices.
Optimized for low-power USB applications.
Cost-sensitive embedded systems.
Applications requiring flexible serial emulation.

MKL27Z64VDA4 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the core processor of the MKL27Z64VDA4?

The core processor is an ARM Cortex-M0+.

What is the program memory size and type?

It has 64KB of program Flash memory.

What is the operating voltage range?

The operating voltage range is 1.71V to 3.6V.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

What package type is the MKL27Z64VDA4 available in?

It is available in a 36-XFBGA package.

What are the key peripherals available on this microcontroller?

Key peripherals include DMA, I²S, PWM, WDT, I²C, FlexIO, SPI, UART/USART, and USB.

What is the speed of the microcontroller?

The microcontroller operates at a speed of 48MHz.

Category	Microcontrollers
Manufacturer Name	NXP Semiconductors
Connectivity	I²C, FlexIO, SPI, UART/USART, USB
Core Processor	ARM® Cortex®-M0+
Core Size	32-Bit
Data Converters	A/D 14x16b
Mounting Type	Surface Mount
Number of I	30
Operating Temperature	-40°C ~ 105°C (TA)
Oscillator Type	Internal
Peripherals	DMA, I²S, PWM, WDT
Program Memory Size	64KB (64K x 8)
Program Memory Type	FLASH
RAM Size	16K x 8
Speed	48MHz
Supplier Device Package	36-XFBGA (3.5x3.5)
Supplier Package	36-XFBGA (3.5x3.5)
Voltage	1.71V ~ 3.6V
