Mfr Part #:

MKL26Z256VMC4

The NXP Semiconductors MKL26Z256VMC4 is a 32-bit microcontroller based on the ARM Cortex-M0+ core, operating at up to 48MHz. It features 256KB of Flash memory and 32KB of RAM.

✓ Total Stock: 34,800 pcs

$ Price Range: $6.40

MKL26Z256VMC4 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	34,800 pcs On Request	34800 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MKL26Z256VMC4 Description

Short technical summary and product information.

The NXP Semiconductors MKL26Z256VMC4 is an efficient, general-purpose 32-bit microcontroller designed for low-power applications. It features an ARM Cortex-M0+ core running at up to 48 MHz, providing industry-leading throughput.

Key specifications include 256 KB of program flash memory and 32 KB of SRAM. The microcontroller offers a wide operating voltage range of 1.71V to 3.6V and operates within an ambient temperature range of -40°C to 105°C. It is equipped with various peripherals such as a DMA controller, I²S module, UART, I2C, and a USB full-/low-speed On-the-Go controller.

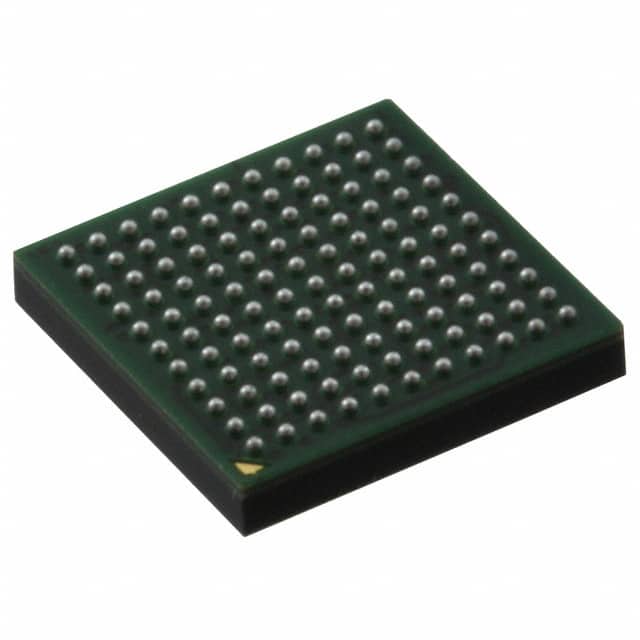

This device is housed in a 121-LFBGA package, suitable for surface mounting. It supports internal oscillation and includes data converters like a 16-bit SAR ADC and a 12-bit DAC. The MKL26Z256VMC4 is designed with an energy-saving architecture optimized for low power consumption.

Connectivity options include I²C, LINbus, SPI, UART/USART, and USB OTG. The microcontroller also features a low-power hardware touch sensor interface (TSI) and up to 80 general-purpose input/output (GPIO) pins. It is RoHS3 compliant.

MKL26Z256VMC4 Quick Information

Product Type: Microcontroller

Series: Kinetis KL2

Canonical Name: MKL26Z256VMC4 32-Bit ARM Cortex-M0+ Microcontroller

Subcategory: Embedded Microcontrollers

MKL26Z256VMC4 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MKL26Z256VMC4 Estimated Pricing

Qty	Low	High
1+	$6.40	$6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MKL26Z256VMC4 Features

32-bit ARM Cortex-M0+ core at 48MHz.
256KB Flash memory and 32KB RAM.
Wide operating voltage from 1.71V to 3.6V.
Integrated USB 2.0 On-the-Go controller.
Surface mount 121-MAPBGA package.

MKL26Z256VMC4 Applications

Suitable for low-power embedded systems.
Ideal for applications needing USB connectivity.
Supports touch sensing interfaces.
Efficient processing for entry-level solutions.

MKL26Z256VMC4 FAQs

4 frequently asked questions generated from this part’s specifications.

What is the operating voltage range for the MKL26Z256VMC4?

The operating voltage range is 1.71V to 3.6V.

What type of package does the MKL26Z256VMC4 use?

The MKL26Z256VMC4 uses a 121-LFBGA package.

What is the operating temperature range for the MKL26Z256VMC4?

The operating temperature range is -40°C to 105°C.

What is the RoHS status of the MKL26Z256VMC4?

The MKL26Z256VMC4 is RoHS3 Compliant.

Category	Microcontrollers
Manufacturer Name	NXP Semiconductors
Connectivity	I²C, LINbus, SPI, UART/USART, USB, USB OTG
Core Processor	ARM® Cortex®-M0+
Core Size	32-Bit Single-Core
Data Converters	A/D - 16bit; D/A - 12bit
Frequency	48 MHz
Mounting Type	Surface Mount
Number of I	80
Number of I/O	80
Operating Temperature	-40°C ~ 105°C
Oscillator Type	Internal
Peripherals	Brown-out Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT
Program Memory Size	256 KB
Program Memory Type	FLASH
RAM Size	32 KB
Speed	48MHz
Supplier Device Package	121-MAPBGA (8x8)
Tape & Reel	Tape & Reel
Voltage	1.71 V ~ 3.6 V
