Mfr Part #:

MKL17Z128VFM4

The NXP Semiconductors MKL17Z128VFM4 is a 32-bit microcontroller featuring an ARM Cortex-M0+ core operating at 48MHz. It offers 128KB of Flash memory and 32KB of RAM.

✓ Total Stock: 5,439 pcs

$ Price Range: $6.40

MKL17Z128VFM4 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	3,539 pcs On Request	3539 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Fe Components ✓ Non-Authorised Inventory information	1,900 pcs On Request	1900 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MKL17Z128VFM4 Description

Short technical summary and product information.

The MKL17Z128VFM4 from NXP Semiconductors is a high-performance 32-bit microcontroller based on the ARM Cortex-M0+ core, capable of operating at speeds up to 48MHz. This device is optimized for cost-sensitive and battery-powered applications, offering a robust feature set for general-purpose connectivity.

Key specifications include 128KB of program Flash memory and 32KB of SRAM for efficient data handling. It is equipped with essential peripherals such as I2C, SPI, and UART/USART interfaces, along with an internal oscillator for stable clocking. The microcontroller supports a wide operating voltage range from 1.71V to 3.6V and operates within a temperature range of -40°C to 105°C.

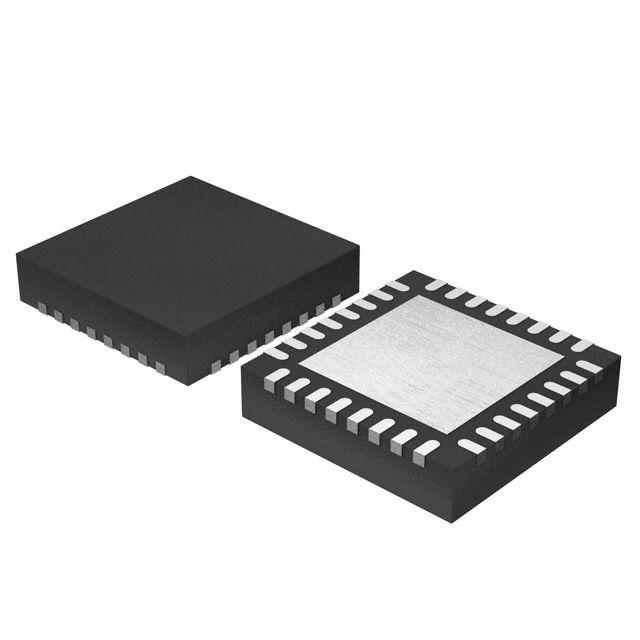

This microcontroller is supplied in a compact 32-QFN (5x5 mm) surface-mount package, making it suitable for integration into space-constrained designs. Its extensive I/O capabilities and low power consumption make it a versatile choice for various embedded systems.

The MKL17Z128VFM4 is well-suited for applications in consumer electronics, industrial control, automotive systems, and medical devices, where reliable performance and efficient power management are critical.

MKL17Z128VFM4 Quick Information

Product Type: Microcontroller

Series: KL17

Canonical Name: MKL17Z128VFM4 Microcontroller

Subcategory: Embedded

MKL17Z128VFM4 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MKL17Z128VFM4 Estimated Pricing

Qty	Low	High
1+	$6.40	$6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MKL17Z128VFM4 Features

32-bit ARM Cortex-M0+ core processor.
Operates at a maximum speed of 48MHz.
128KB of program Flash memory.
32KB of SRAM for data processing.
Wide operating voltage range of 1.71V to 3.6V.

MKL17Z128VFM4 Applications

Suitable for consumer electronics.
Used in industrial control systems.
Applicable in automotive designs.
Can be used in medical devices.

MKL17Z128VFM4 FAQs

4 frequently asked questions generated from this part’s specifications.

What is the operating voltage range of the MKL17Z128VFM4?

The operating voltage range is 1.71V to 3.6V.

What package type is used for the MKL17Z128VFM4?

It is packaged in a 32-QFN (5x5) surface-mount package with an exposed pad.

What is the operating temperature range for the MKL17Z128VFM4?

The operating temperature range is -40°C to 105°C.

Is the MKL17Z128VFM4 RoHS compliant?

Yes, it is RoHS3 compliant.

Category	Microcontrollers
Manufacturer Name	NXP Semiconductors
AEC Qualified	No
Automotive Grade	No
Connectivity	I²C, LINbus, SPI, UART/USART
Core Processor	ARM® Cortex®-M0+
Core Size	32-Bit
Data Converters	11x16-bit ADC and 1x12-bit DAC
Industrial Grade	No
Lead Spacing	5 mm
Medical Grade	No
Military Grade	No
Mounting Type	Surface Mount
Number of I	28
Operating Temperature	[{'min': -40, 'max': 105, 'unit': '°C', 'display_value': '-40°C ~ 105°C (TA)'}]
Oscillator Type	Internal
Peripherals	Brown-out Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT
Program Memory Size	128KB
Program Memory Type	FLASH
RAM Size	32KB
Speed	48MHz
Supplier Device Package	32-QFN (5x5)
Tape & Reel	No
Voltage	[{'min': 1.71, 'max': 3.6, 'unit': 'V', 'display_value': '1.71V ~ 3.6V'}]
