Mfr Part #:

MKL05Z8VFM4

The NXP Semiconductors MKL05Z8VFM4 is a microcontroller featuring an ARM Cortex-M0+ core. It offers 8KB of Flash memory and operates at up to 48MHz.

✓ Total Stock: 4,900 pcs

$ Price Range: $6.40

MKL05Z8VFM4 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	4,900 pcs On Request	4900 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MKL05Z8VFM4 Description

Short technical summary and product information.

The NXP Semiconductors MKL05Z8VFM4 is an embedded microcontroller based on the ARM Cortex-M0+ architecture, designed for efficiency and performance. It operates at a speed of up to 48MHz and is equipped with 8KB of program flash memory and 1KB of SRAM.

This microcontroller supports various communication interfaces including I2C, SPI, and UART/USART, making it versatile for different applications. It also includes essential peripherals such as Brown-out Detect/Reset, DMA, LVD, POR, PWM, and WDT. The device features a 32-bit single-core processor and a voltage range of 1.71V to 3.6V.

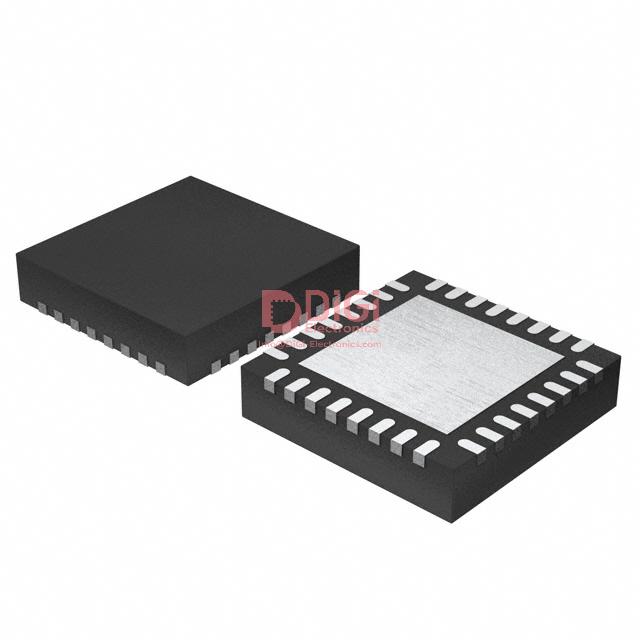

The MKL05Z8VFM4 is available in a 32-VFQFN Exposed Pad package and utilizes surface mount technology. Its operating temperature range is -40°C to 105°C (TA). The integrated data converters include a 14-bit Analog-to-Digital converter and a 12-bit Digital-to-Analog converter.

MKL05Z8VFM4 Quick Information

Product Type: Microcontroller

Series: Kinetis KL0

Canonical Name: MKL05Z8VFM4

Subcategory: Microcontrollers

MKL05Z8VFM4 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MKL05Z8VFM4 Estimated Pricing

Qty	Low	High
1+	$6.40	$6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MKL05Z8VFM4 Features

ARM Cortex-M0+ 32-bit single-core processor.
Operates at a speed of 48MHz.
8KB program flash memory and 1KB SRAM.
Supports I2C, SPI, and UART/USART connectivity.
Surface mountable in a 32-VFQFN package.

MKL05Z8VFM4 Applications

Suitable for embedded control applications.
Ideal for low-power embedded systems.
Used in devices requiring serial communication.
Applications needing analog-to-digital conversion.

MKL05Z8VFM4 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage range for the MKL05Z8VFM4?

The operating voltage range is 1.71V to 3.6V.

What package type is the MKL05Z8VFM4 available in?

The MKL05Z8VFM4 is available in a 32-VFQFN Exposed Pad package.

What is the operating temperature range for this microcontroller?

The operating temperature range is -40°C to 105°C (TA).

What is the RoHS status of the MKL05Z8VFM4?

The RoHS status is Compliant.

What is the Moisture Sensitivity Level (MSL) for the MKL05Z8VFM4?

The Moisture Sensitivity Level is 1.

What is the program memory size of the MKL05Z8VFM4?

The program memory size is 8KB (8K x 8).

What core processor does the MKL05Z8VFM4 use?

It uses an ARM® Cortex®-M0+ core.

Category	Microcontrollers
Manufacturer Name	NXP Semiconductors
AEC Qualified	No
Automotive Grade	No
Connectivity	I²C, SPI, UART/USART
Core Processor	ARM® Cortex®-M0+
Core Size	32-Bit Single-Core
Data Converters	A/D 14x12b; D/A 1x12b
Industrial Grade	No
Lead Spacing	0 mm
Medical Grade	No
Military Grade	No
Mounting Type	Surface Mount, Wettable Flank
Number of I	28
Operating Temperature	-40°C ~ 105°C (TA)
Oscillator Type	Internal
Peripherals	Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT
Program Memory Size	8KB (8K x 8)
Program Memory Type	FLASH
RAM Size	1K x 8
Speed	48 MHz
Supplier Device Package	32-HVQFN (5x5)
Tape & Reel	No
Voltage	1.71V ~ 3.6V
