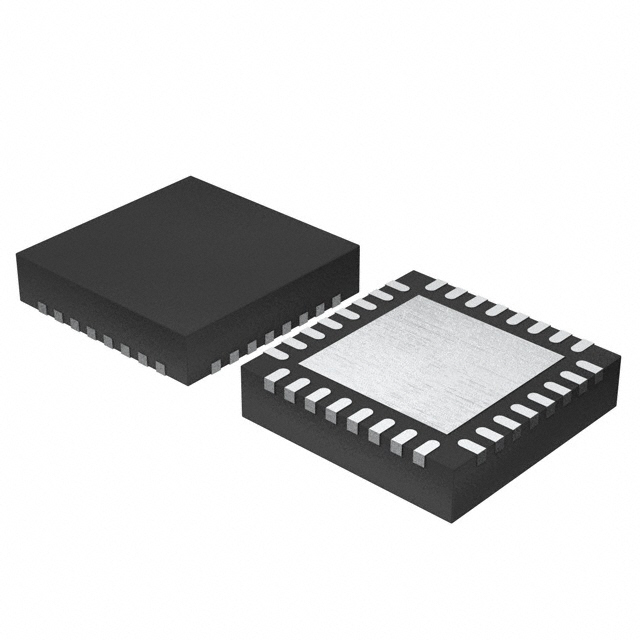

MKE02Z32VFM4 The NXP Semiconductors MKE02Z32VFM4 is a 32-bit microcontroller featuring 32KB of FLASH program memory and operating at up to 40MHz. It is housed in a 32QFN package.
Mfr Part #:

MKE02Z32VFM4

Available from 3 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MKE02Z32VFM4 is a 32-bit microcontroller featuring 32KB of FLASH program memory and operating at up to 40MHz. It is housed in a 32QFN package.
✓ Total Stock: 7,381 pcs
$ Price Range: $6.40

MKE02Z32VFM4 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request 20+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,718 pcs
On Request
1718 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
1,663 pcs
On Request
1663 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MKE02Z32VFM4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

MKE02Z32VFM4 Description

Short technical summary and product information.

The MKE02Z32VFM4 from NXP Semiconductors is a high-performance 32-bit microcontroller designed for embedded applications. It belongs to the Kinetis KE02 series and offers a robust feature set.



Key specifications include 32KB of FLASH program memory, 4KB of RAM, and an operating speed of up to 40MHz. The device supports a supply voltage range of 2.7V to 5.5V. It features integrated peripherals such as a Low Voltage Detector (LVD), Pulse Width Modulation (PWM), and a Watchdog Timer (WDT). Connectivity options include I2C, SPI, and UART/USART protocols. For analog interfacing, it provides a 16x12-bit ADC and a 2x6-bit DAC.



The MKE02Z32VFM4 is supplied in a 32-pin QFN package, specifically a 32-VFQFN Exposed Pad with a 5x5mm footprint. It is designed for surface mounting with wettable flanks, making it suitable for automated assembly processes. The operating temperature range is -40°C to 105°C (TA).



This microcontroller is versatile and finds applications in consumer electronics, industrial automation, automotive systems, medical devices, and IoT devices due to its low power consumption and processing capabilities.

MKE02Z32VFM4 Quick Information

Product Type: Microcontroller
Series: Kinetis KE02
Canonical Name: NXP Semiconductors MKE02Z32VFM4 Microcontroller
Subcategory: 32-bit Microcontroller

MKE02Z32VFM4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MKE02Z32VFM4 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MKE02Z32VFM4 Features

  • 32KB FLASH program memory.
  • 4KB RAM for efficient data handling.
  • Operates at speeds up to 40MHz.
  • Supports I2C, SPI, and UART/USART.
  • 32-VFQFN exposed pad package.

MKE02Z32VFM4 Applications

  • Ideal for consumer electronics.
  • Suitable for industrial automation.
  • Used in automotive applications.
  • Applicable for medical devices.
  • Excellent for IoT devices.

MKE02Z32VFM4 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the program memory size of the MKE02Z32VFM4?

The MKE02Z32VFM4 has 32KB of FLASH program memory.

What is the RAM size for the MKE02Z32VFM4 microcontroller?

The MKE02Z32VFM4 features 4KB of RAM.

What is the maximum operating speed of the MKE02Z32VFM4?

The MKE02Z32VFM4 can operate at speeds up to 40MHz.

What is the supply voltage range for the MKE02Z32VFM4?

The MKE02Z32VFM4 supports a supply voltage range of 2.7V to 5.5V.

What package is the MKE02Z32VFM4 microcontroller supplied in?

The MKE02Z32VFM4 is supplied in a 32-VFQFN Exposed Pad package.

What is the operating temperature range for the MKE02Z32VFM4?

The operating temperature range for the MKE02Z32VFM4 is -40°C to 105°C (TA).

What are the main peripherals integrated into the MKE02Z32VFM4?

The MKE02Z32VFM4 integrates Low Voltage Detector (LVD), Pulse Width Modulation (PWM), and Watchdog Timer (WDT).
