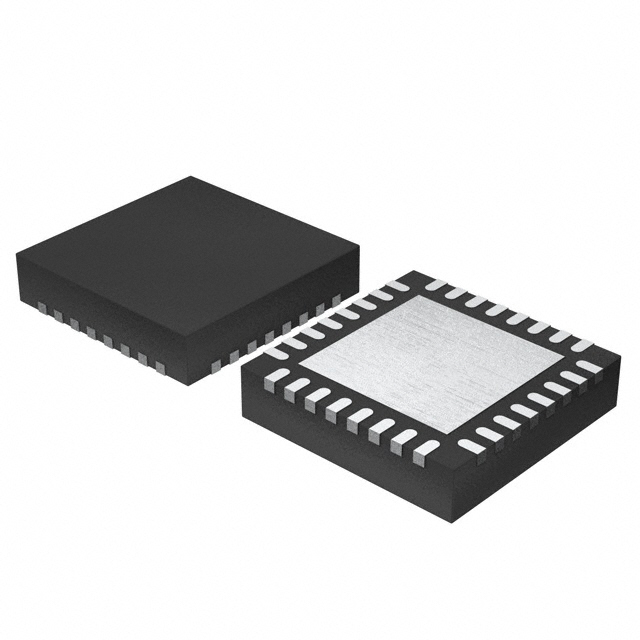

MKE02Z16VFM4 The NXP Semiconductors MKE02Z16VFM4 is a 32-bit microcontroller featuring 16KB of FLASH program memory and operating at up to 40MHz. It is housed in a 32QFN package.
Mfr Part #:

MKE02Z16VFM4

Available from 2 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MKE02Z16VFM4 is a 32-bit microcontroller featuring 16KB of FLASH program memory and operating at up to 40MHz. It is housed in a 32QFN package.
✓ Total Stock: 6,808 pcs
$ Price Range: $6.40

MKE02Z16VFM4 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
6,413 pcs
On Request
6413 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
395 pcs
On Request
395 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MKE02Z16VFM4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

MKE02Z16VFM4 Description

Short technical summary and product information.

The MKE02Z16VFM4 from NXP Semiconductors is a high-performance 32-bit microcontroller belonging to the Kinetis KE02 series. Designed for embedded applications, it offers robust performance with a 40MHz clock speed and an ARM® Cortex®-M0+ core.



This MCU is equipped with 16KB of FLASH program memory, 2KB of RAM, and 256 bytes of EEPROM for non-volatile data storage. It operates within a voltage range of 2.7V to 5.5V and features essential peripherals such as a Low Voltage Detector (LVD), Pulse Width Modulation (PWM), and a Watchdog Timer (WDT). For data conversion, it includes 16 channels of 12-bit Analog-to-Digital Converters (ADC) and 2 channels of 6-bit Digital-to-Analog Converters (DAC).



Connectivity is provided through I2C, SPI, and UART/USART interfaces, enabling seamless communication with other devices. The microcontroller has 28 I/O pins for versatile control. It utilizes an internal oscillator for reliable clock generation.



The MKE02Z16VFM4 is supplied in a 32-pin QFN package, suitable for surface-mount applications. Its operating temperature range is -40°C to 105°C (TA). This component is RoHS3 compliant and REACH unaffected.

MKE02Z16VFM4 Quick Information

Product Type: Microcontroller
Series: Kinetis KE02
Canonical Name: MKE02Z16VFM4 Microcontroller
Subcategory: Embedded Microcontrollers

MKE02Z16VFM4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MKE02Z16VFM4 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MKE02Z16VFM4 Features

  • 32-bit ARM Cortex-M0+ core processor.
  • Operates at a maximum speed of 40MHz.
  • 16KB FLASH program memory and 2KB RAM.
  • Integrated I2C, SPI, and UART/USART interfaces.
  • Surface mount 32-VFQFN package.

MKE02Z16VFM4 Applications

  • Ideal for consumer electronics applications.
  • Suitable for industrial automation systems.
  • Used in automotive control units.
  • Applicable for medical device designs.
  • Supports IoT device development.

MKE02Z16VFM4 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the program memory size of the MKE02Z16VFM4?

The MKE02Z16VFM4 has 16KB of FLASH program memory.

What is the operating voltage range for the MKE02Z16VFM4?

The operating voltage range for the MKE02Z16VFM4 is 2.7V to 5.5V.

What is the operating temperature range of the MKE02Z16VFM4?

The operating temperature range for the MKE02Z16VFM4 is -40°C to 105°C (TA).

What package type is the MKE02Z16VFM4 supplied in?

The MKE02Z16VFM4 is supplied in a 32-VFQFN Exposed Pad package.

What are the connectivity options for the MKE02Z16VFM4?

The MKE02Z16VFM4 features I2C, SPI, and UART/USART interfaces.
