| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Contact Plating | |
| Current Rating | |
| Depth | |
| Features | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Voltage |

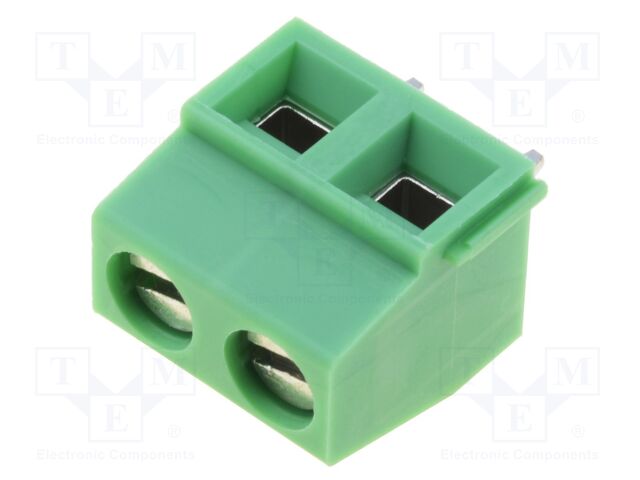

This PCB terminal block from Phoenix Contact, part number MKDSN1.5-2-5.08, is designed for wire-to-board applications. It offers a current rating of 10A and a voltage rating of 300V, with 2 positions available.
The terminal block features an angled 90° spatial orientation and is designed for mechanical mounting directly on PCBs. Electrical mounting is achieved via cage clamp, screw terminal, and THT connections. The contacts are tinned for reliable conductivity.
Constructed from polyamide with a green body, this component has a flammability rating of UL94V-0. It supports wire sizes from 26AWG to 16AWG, with a wire cross-section range of 0.25 to 1.5mm². The pitch between contacts is 5.08mm.
Key mechanical dimensions include a depth of 8.1mm, length of 10.16mm, and a height of 10mm. The pinout layout is 1x2. This product conforms to CSA, UL, and VDE standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 10A.
The rated voltage is 300V.
It has 2 positions.
The contacts pitch is 5.08mm.
It supports cage clamp, screw terminal, and THT electrical mounting.
It accepts wire sizes from 26AWG to 16AWG.
The flammability rating is UL94V-0.
