| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connection Type | |
| Height | |
| Hole Diameter | |
| Length | |
| Mounting Type | |
| Number of Rows | |
| Pin Length | |
| Pitch | |
| Rated Current | |
| SVHC Present | |
| Voltage | |
| Width |

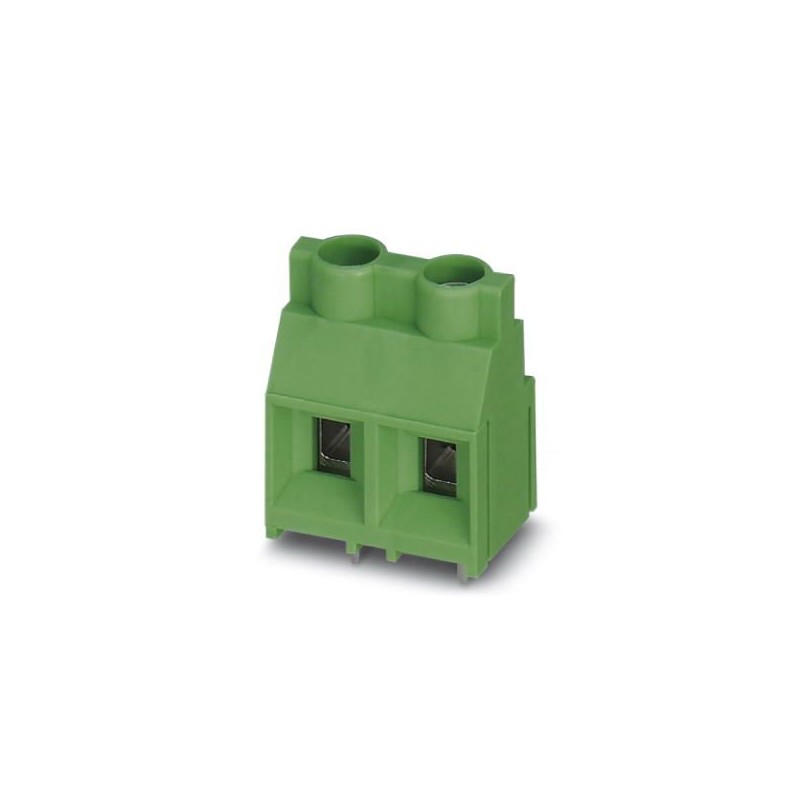

The Phoenix Contact MKDS5-3-9.5 is a PCB terminal block designed for reliable electrical connections on printed circuit boards. It offers a high rated current of 32A and a significant sizing voltage rating of 1000V (III/2), making it suitable for demanding applications.
The terminal block has a nominal section of 4 mm² and features 3 potentials across a single row. The connection type is a screw connection with a traction capsule, ensuring secure conductor termination. It is designed for wave welding mounting, with a connection direction of 0° conductor/printed circuit board.
Key mechanical specifications include a pitch of 9.52 mm, a pin length of 5 mm, and a linear pin arrangement. The overall dimensions are 12.05 mm in length, 28.56 mm in width, and 21.5 mm in height (26.5 mm height [h]). The color is green, and the hole diameter is 1.3 mm. This product is supplied in a box, with 50 units per package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 32 A.
The sizing voltage rating (III/2) is 1000 V.
The pitch is 9.52 mm.
It has 3 potentials.
It uses a screw connection with a traction capsule.
It is designed for wave welding.
It comes in boxes with 50 units per package.
