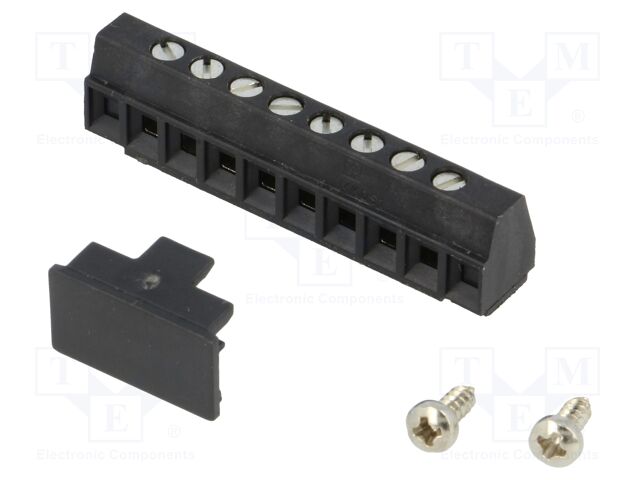

MKDS1-8-3.81 The Phoenix Contact MKDS1-8-3.81 is a PCB terminal block designed for wire-to-board connections. It features 8 positions, an 8A current rating, and a 160V voltage rating.
Mfr Part #:

MKDS1-8-3.81

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
The Phoenix Contact MKDS1-8-3.81 is a PCB terminal block designed for wire-to-board connections. It features 8 positions, an 8A current rating, and a 160V voltage rating.
✓ Total Stock: 75 pcs
$ Price Range: $0.46

MKDS1-8-3.81 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
75 pcs
On Request
75 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MKDS1-8-3.81 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Color
Contact Plating
Current Rating
Depth
Height
Lead Spacing
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage
View Similar Products (0)

MKDS1-8-3.81 Description

Short technical summary and product information.

This Phoenix Contact MKDS1-8-3.81 is a PCB terminal block with a wire-to-board connection type. It offers a high current rating of 8A and a voltage rating of 160V, making it suitable for various power applications.



The terminal block has 8 positions arranged in a 1x8 pinout layout with a pitch of 3.81mm. It is designed for SMT (Surface Mount Technology) mounting and features screw terminals for electrical connections. The contacts are tinned for reliable conductivity.



Constructed from polyamide, this component has a black color and an angled 90° spatial orientation. It operates within a temperature range of -40°C to 105°C and has a flammability rating of UL94V-0. The wire cross-section supported is up to 1.5mm².



Key mechanical dimensions include a depth of 7.3mm and a height of 9.2mm. This PCB terminal block is ideal for applications requiring secure and efficient wire termination on printed circuit boards.

MKDS1-8-3.81 Quick Information

Product Type: PCB Terminal Block
Series: MKDS 1
Canonical Name: Phoenix Contact MKDS1-8-3.81 PCB Terminal Block
Subcategory: PCB Terminal Blocks

MKDS1-8-3.81 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MKDS1-8-3.81 Estimated Pricing

Qty Low High
1+ $0.46 $0.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

MKDS1-8-3.81 Features

  • 8A current rating for power applications.
  • 160V voltage rating for electrical systems.
  • 8 positions for wire connections.
  • SMT mounting for automated assembly.
  • Screw terminal for secure wire termination.

MKDS1-8-3.81 Applications

  • Ideal for power distribution on PCBs.
  • Suitable for signal routing applications.
  • Used in industrial control systems.
  • Applicable in consumer electronics.
  • Facilitates modular circuit design.

MKDS1-8-3.81 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the MKDS1-8-3.81 PCB terminal block?

The current rating is 8A.

What is the voltage rating for the MKDS1-8-3.81?

The rated voltage is 160V.

How many positions does the MKDS1-8-3.81 terminal block have?

It has 8 positions.

What is the pitch between contacts on the MKDS1-8-3.81?

The pitch is 3.81mm.

What type of mounting is used for the MKDS1-8-3.81?

It uses SMT mounting.

What is the operating temperature range for this terminal block?

The operating temperature range is -40°C to 105°C.
