| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Height | |
| Hole Diameter | |
| Mounting Type | |
| Number of Positions | |
| Pitch | |
| Voltage Rating |

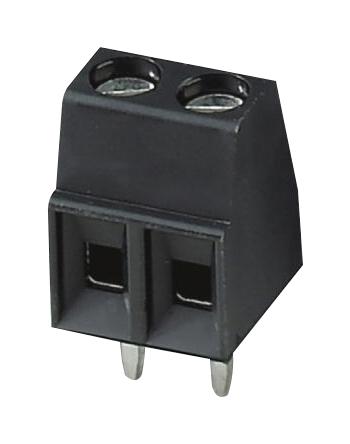

This Phoenix Contact PCB terminal block, model MKDS1-2-3.5HT BK, is engineered for reliable pin connections in PCB assemblies. It utilizes a screw connection with a tension sleeve for secure contact and supports a nominal current of 13.5 A and a voltage of 200 V.
The terminal block features a pitch of 3.5 mm and two positions, making it suitable for compact designs. Its SMT (Surface Mount Technology) soldering mounting allows for seamless integration into SMT processes, including reflow ovens. The insulation material is PA, offering a UL 94V-0 flammability rating for enhanced safety.
Designed for versatile conductor connections, it accommodates solid or stranded wires with cross-sections ranging from 0.14 mm² to 1.5 mm² (AWG 26 to 16). The M2 screw thread and a tightening torque specification of 0.22 - 0.25 Nm ensure a reliable electrical connection. This component meets EN-VDE standards and has CSA, EAC recognition, compatible with UL, CULus, and IEC regulations.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It supports 2 electrical positions.
The pitch is 3.5 mm.
The rated current is 13.5 A.
The maximum voltage rating is 200 V.
It uses surface-mount technology (SMT).
Supports conductor cross-sections from 0.14 mm² to 1.5 mm².
