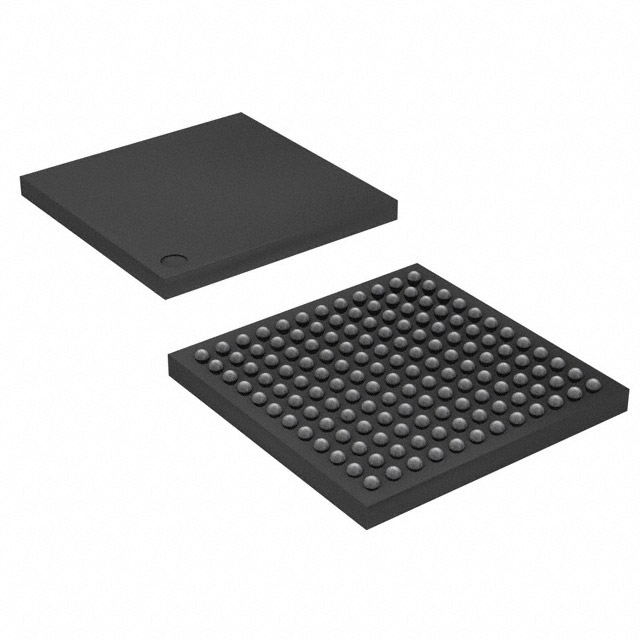

MK61FN1M0VMD12 The NXP Semiconductors MK61FN1M0VMD12 is a 32-bit microcontroller featuring 1MB of FLASH program memory and 128KB of RAM, operating at 120MHz. It offers extensive connectivity options and a surface-mount 144-MAPBGA package.
Mfr Part #:

MK61FN1M0VMD12

Available from 2 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MK61FN1M0VMD12 is a 32-bit microcontroller featuring 1MB of FLASH program memory and 128KB of RAM, operating at 120MHz. It offers extensive connectivity options and a surface-mount 144-MAPBGA package.
✓ Total Stock: 2,910 pcs
$ Price Range: $6.40

MK61FN1M0VMD12 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
1,674 pcs
On Request
1674 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,236 pcs
On Request
1236 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MK61FN1M0VMD12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

MK61FN1M0VMD12 Description

Short technical summary and product information.

The NXP Semiconductors MK61FN1M0VMD12 is a high-performance 32-bit microcontroller based on the ARM Cortex-M4 core, operating at a maximum frequency of 120MHz. It provides 1MB of FLASH program memory and 128KB of RAM, making it suitable for complex embedded applications.



This microcontroller is equipped with 95 I/O pins and supports a wide range of peripherals including DMA, I2S, LVD, POR, PWM, and WDT. Connectivity options are extensive, featuring CANbus, Ethernet, I2C, SPI, UART/USART, and USB with OTG support. It also includes 53 analog-to-digital converters with 16-bit resolution and 2 digital-to-analog converters with 12-bit resolution.



The MK61FN1M0VMD12 operates within a supply voltage range of 1.71V to 3.6V and has an operating temperature range of -40°C to 105°C (TA). It is housed in a 144-MAPBGA (13x13) surface-mount package, designed for efficient integration into compact electronic systems. The internal oscillator simplifies design by reducing the need for external components.



Compliance includes RoHS3 compliance and REACH unaffected status. The device has a Moisture Sensitivity Level (MSL) of 1 Unlimited, indicating suitability for various manufacturing environments.

MK61FN1M0VMD12 Quick Information

Product Type: Microcontroller
Canonical Name: NXP Semiconductors MK61FN1M0VMD12 Microcontroller
Subcategory: Microcontrollers

MK61FN1M0VMD12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MK61FN1M0VMD12 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MK61FN1M0VMD12 Features

  • 32-bit ARM Cortex-M4 core processor.
  • 1MB FLASH program memory and 128KB RAM.
  • Operates at a maximum speed of 120MHz.
  • Features 95 I/O pins for extensive connectivity.
  • Supports multiple communication interfaces including Ethernet and USB OTG.

MK61FN1M0VMD12 Applications

  • Ideal for industrial automation systems.
  • Suitable for automotive control units.
  • Used in medical device applications.
  • Enhances consumer electronics performance.
  • Supports networking and IoT applications.

MK61FN1M0VMD12 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the program memory size of the MK61FN1M0VMD12?

The MK61FN1M0VMD12 has 1MB (1M x 8) of FLASH program memory.

What is the RAM size for the MK61FN1M0VMD12 microcontroller?

The MK61FN1M0VMD12 features 128KB of RAM.

What is the operating speed of the MK61FN1M0VMD12?

The MK61FN1M0VMD12 operates at a speed of 120MHz.

What is the supply voltage range for this microcontroller?

The MK61FN1M0VMD12 supports a supply voltage range of 1.71V to 3.6V.

How many I/O pins does the MK61FN1M0VMD12 have?

This microcontroller is equipped with 95 I/O pins.

What are the key peripherals available on the MK61FN1M0VMD12?

Key peripherals include DMA, I2S, LVD, POR, PWM, and WDT.

What is the operating temperature range for the MK61FN1M0VMD12?

The operating temperature range is -40°C to 105°C (TA).
