Mfr Part #:

MK30DN512VLL10

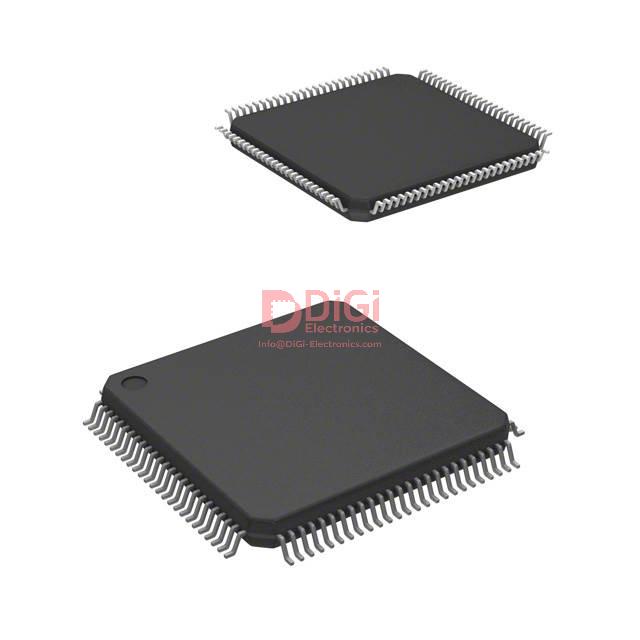

The MK30DN512VLL10 is a 32-bit microcontroller featuring an ARM Cortex-M4 core operating at 100MHz. It offers 512KB of flash memory and 128KB of RAM.

✓ Total Stock: 540 pcs

$ Price Range: $5.55

MK30DN512VLL10 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Rayichip ✓ Non-Authorised Inventory information	270 pcs On Request	270 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	270 pcs On Request	270 pcs	On Request	1	On Request	On Request	1631+	On Request	On Request

MK30DN512VLL10 Description

Short technical summary and product information.

The NXP Semiconductors MK30DN512VLL10 is a high-performance 32-bit microcontroller based on the ARM Cortex-M4 core, capable of reaching speeds up to 100 MHz. This device is equipped with 512 KB of program flash memory and 128 KB of RAM, making it suitable for demanding embedded applications.

Key features include a comprehensive set of communication interfaces such as two Controller Area Network (CAN) modules, three SPI modules, two I2C modules, and five UART modules. It also supports a Secure Digital host controller (SDHC) and an I2S module. For system control and optimization, it incorporates a 16-channel DMA controller, multiple low-power modes, and a memory protection unit.

Analog capabilities include two 16-bit SAR ADCs with programmable gain amplifiers, a 12-bit DAC, and three analog comparators. The human-machine interface is supported by a segment LCD controller and a low-power hardware touch sensor interface (TSI).

Packaged in a 100-LQFP, the MK30DN512VLL10 is designed for surface mount applications. Its operating voltage range is 1.71 to 3.6 V, with a flash write voltage range of 1.71 to 3.6 V. The ambient temperature range is -40 to 105°C.

MK30DN512VLL10 Quick Information

Product Type: Microcontroller

Series: Kinetis K30

Canonical Name: Freescale Semiconductor MK30DN512VLL10 Microcontroller

Subcategory: ARM Cortex-M4

MK30DN512VLL10 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MK30DN512VLL10 Estimated Pricing

Qty	Low	High
1+	$5.55	$5.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

MK30DN512VLL10 Features

ARM Cortex-M4 core at 100 MHz
512KB program flash memory
128KB RAM
Multiple communication interfaces
100-LQFP package for surface mounting

MK30DN512VLL10 Applications

Embedded system control
Data acquisition systems
Industrial automation
Consumer electronics

MK30DN512VLL10 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the operating voltage range for the MK30DN512VLL10?

The operating voltage range is 1.71 to 3.6 V.

What is the clock speed of the ARM Cortex-M4 core?

The ARM Cortex-M4 core operates at up to 100 MHz.

How much flash memory does the MK30DN512VLL10 have?

It has up to 512 KB of program flash memory.

What are the available communication interfaces on this microcontroller?

It features two CAN modules, three SPI modules, two I2C modules, five UART modules, an SDHC, and an I2S module.

What type of package is the MK30DN512VLL10 supplied in?

The MK30DN512VLL10 is supplied in a 100-LQFP package.

Category	New Products
Manufacturer Name	Freescale Semiconductor
Connectivity	CANbus, I2C, IrDA, SD, SPI, UART/USART
Core Processor	ARM Cortex-M4
Core Size	32-Bit Single-Core
Mounting Type	Surface Mount
Operating Temperature	-40 to 105°C
Peripherals	DMA, I2S, LCD, LVD, POR, PWM, WDT
Voltage	1.71 to 3.6 V
