| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,440 pcs
|
10440 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The NXP Semiconductors MK22FN256CAH12R is a high-performance 32-bit microcontroller designed for embedded applications. It features an ARM Cortex-M4 core operating at a speed of 120MHz, providing efficient processing capabilities.
This microcontroller comes with 256KB of FLASH program memory and 48KB of RAM, suitable for a wide range of tasks. It supports various peripherals including DMA, I²S, LVD, POR, PWM, and WDT, along with connectivity options like I²C, IrDA, SPI, UART/USART, and USB.

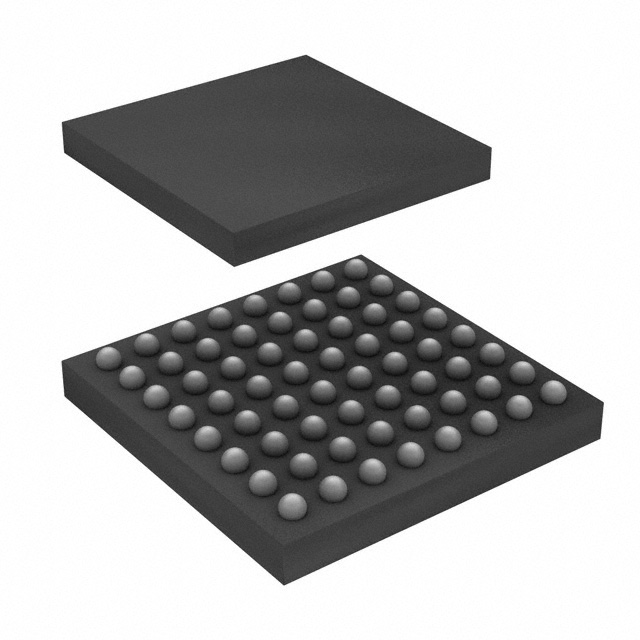

The MK22FN256CAH12R is packaged in a compact 64-WLCSP (3.35x3.32) format, designed for surface mounting. It operates within a voltage range of 1.71V to 3.6V and has an operating temperature range of -40°C to 85°C (TA).
Key features include 22 channels for 16-bit Analog-to-Digital conversion and 1 channel for 12-bit Digital-to-Analog conversion. The device offers 40 I/O pins for flexible interfacing.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The core processor is ARM Cortex-M4.
The operating speed is 120MHz.
It has 256KB of FLASH program memory.
The RAM size is 48K x 8.
The operating voltage is between 1.71V and 3.6V.
The operating temperature is -40°C to 85°C (TA).
It is supplied in a 64-UFBGA, WLCSP package.
