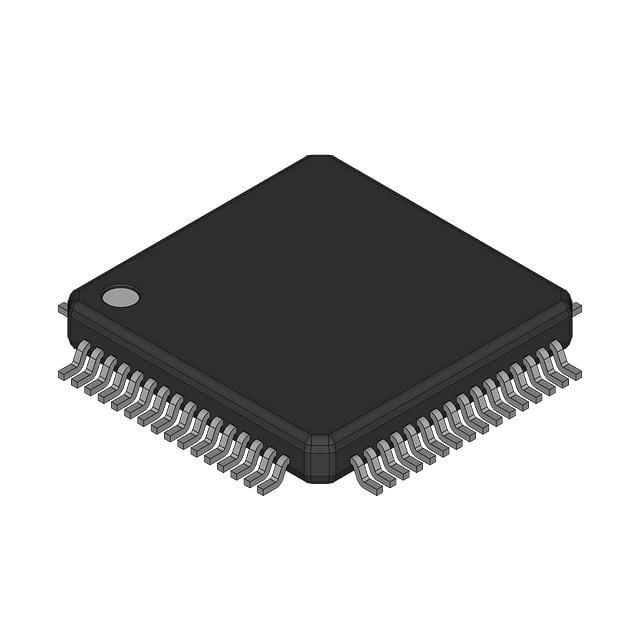

MK22DX256VLH5 The NXP Semiconductors MK22DX256VLH5 is a Kinetis K22 microcontroller with a 50MHz ARM Cortex-M4 core. It offers 256KB of program flash and 64KB of RAM.
Mfr Part #:

MK22DX256VLH5

Available from 2 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MK22DX256VLH5 is a Kinetis K22 microcontroller with a 50MHz ARM Cortex-M4 core. It offers 256KB of program flash and 64KB of RAM.
✓ Total Stock: 12,772 pcs
$ Price Range: $6.40

MK22DX256VLH5 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
11,142 pcs
On Request
11142 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,630 pcs
On Request
1630 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MK22DX256VLH5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Processor
GPIO
Operating Temperature
Operating Voltage
Storage Temperature
Tape & Reel
Watchdog Timer
View Similar Products (0)

MK22DX256VLH5 Description

Short technical summary and product information.

The NXP Semiconductors MK22DX256VLH5 is part of the Kinetis K22 family, featuring a high-performance 50 MHz ARM Cortex-M4 core with DSP instructions. This microcontroller operates within a voltage range of 1.71 to 3.6 V and an ambient temperature range of -40 to 105°C.



It provides up to 256 KB of program flash memory and 64 KB of RAM, along with 64 KB of FlexNVM and 4 KB of FlexRAM. The device includes a variety of peripherals such as a 16-channel DMA controller, multiple low-power modes, hardware CRC module, 16-bit SAR ADC, 12-bit DAC, and multiple communication interfaces including USB, SPI, I2C, and UART.



The MK22DX256VLH5 is available in an LH package, suitable for various embedded applications requiring robust processing capabilities and a rich set of peripherals. Its design supports power optimization and efficient data handling through its integrated features.

MK22DX256VLH5 Quick Information

Product Type: Microcontroller
Series: Kinetis K
Canonical Name: MK22DX256VLH5
Subcategory: Kinetis K22

MK22DX256VLH5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MK22DX256VLH5 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MK22DX256VLH5 Features

  • 50 MHz ARM Cortex-M4 core with DSP
  • Up to 256 KB program flash memory
  • Up to 64 KB RAM
  • Wide operating voltage range 1.71-3.6V
  • Comprehensive peripheral set including USB, SPI, I2C, UART

MK22DX256VLH5 Applications

  • Ideal for embedded control systems
  • Suitable for signal processing tasks
  • Powers various communication interfaces
  • Supports low-power applications

MK22DX256VLH5 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the MK22DX256VLH5?

The operating voltage range is 1.71 to 3.6 V.

What is the operating temperature range of the MK22DX256VLH5?

The ambient temperature range is -40 to 105°C.

What is the maximum operating frequency of the MK22DX256VLH5?

The microcontroller operates at up to 50 MHz.

How much program flash memory does the MK22DX256VLH5 have?

It has up to 256 KB of program flash memory.

What is the RAM size for the MK22DX256VLH5?

The device has up to 64 KB of RAM.

What communication interfaces are available on the MK22DX256VLH5?

It supports USB, SPI, two I2C modules, and four UART modules.
