| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,340 pcs
|
3340 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |
The NXP Semiconductors MK20DX256VMD10 is a high-performance 32-bit microcontroller from the Kinetis K20 series, built around a 100MHz ARM Cortex-M4 core with DSP instructions. This device is designed for embedded applications requiring significant processing power and a rich set of peripherals.
Key electrical specifications include 256KB of FLASH program memory and 64KB of RAM, supporting complex applications. It operates within a voltage range of 1.71V to 3.6V and features a 16-bit ADC with 42 channels and a 12-bit DAC with 2 channels. Connectivity options are extensive, including CANbus, I2C, SPI, UART, and USB OTG.

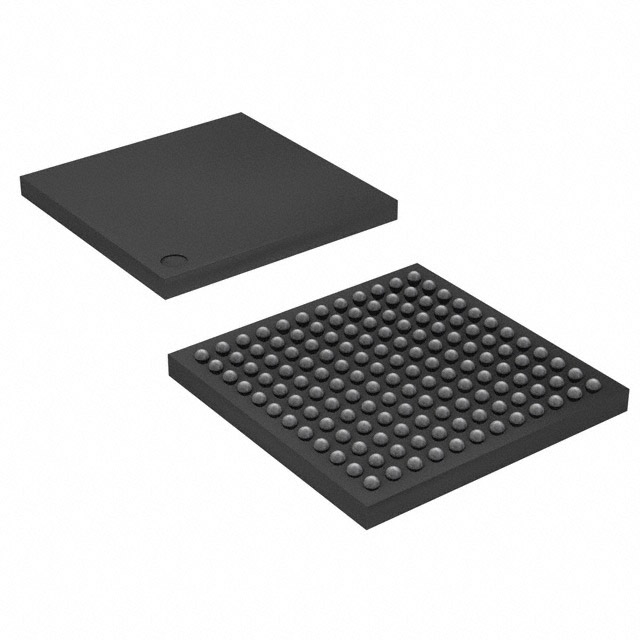

The MK20DX256VMD10 is housed in a 144-pin MAPBGA package, suitable for surface mount applications. It operates within an ambient temperature range of -40°C to 105°C. The microcontroller includes peripherals such as DMA, I2S, PWM, and WDT, making it versatile for various embedded systems.
This microcontroller is well-suited for industrial control, consumer electronics, automotive, and communication systems due to its performance, memory capacity, and connectivity features.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.71V to 3.6V.
The operating temperature range is -40°C to 105°C.
The ARM Cortex-M4 core operates at up to 100MHz.
The microcontroller has 256KB of FLASH program memory.
The RAM size is 64KB.
The MK20DX256VMD10 is available in a 144-MAPBGA package.
