Mfr Part #:

MK16-C-2

The Standex-Meder Electronics MK16-C-2 is a SPST-NO reed switch designed for surface mounting. It offers a 200V voltage rating and a 500mA current capacity.

✓ Total Stock: 6,840 pcs

$ Price Range: $0.75

MK16-C-2 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	3,424 pcs On Request	3424 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	3,416 pcs On Request	3416 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MK16-C-2 Description

Short technical summary and product information.

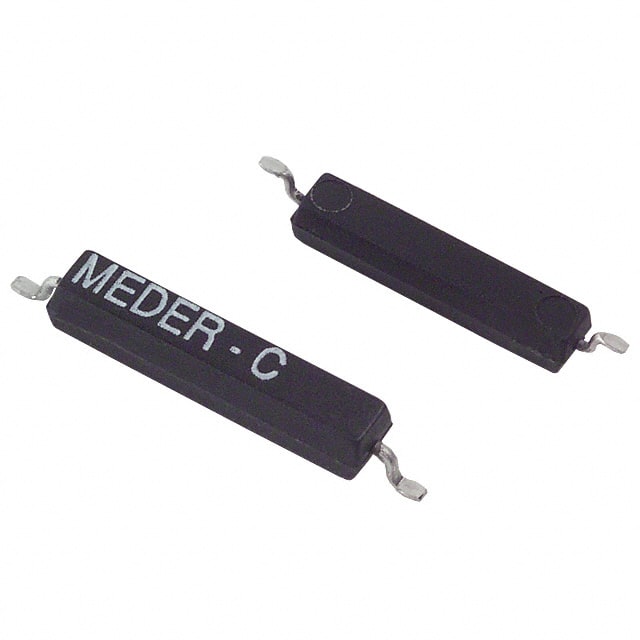

The Standex-Meder Electronics MK16-C-2 is a molded body reed switch with a SPST-NO (Single Pole Single Throw - Normally Open) circuit configuration. It is designed for surface mounting with a gull wing termination style, making it suitable for automated assembly processes.

This reed switch operates at a maximum voltage of 200V and can handle a current of 500mA (AC/DC). It has an operate range of 15 to 20 AT and a power rating of 10W. The operating temperature range is from -40°C to 130°C.

Key mechanical dimensions include a length of 15.60mm (0.614"), a width of 2.30mm (0.091"), and a height of 2.30mm (0.091"). The height above the board is 2.40mm (0.094"). It also features a low capacitance of 0.2 pF, a fast operate time of 0.6 ms, and a release time of 0.05 ms.

The MK16-C-2 is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions. REACH status is unaffected.

MK16-C-2 Quick Information

Product Type: Reed Switch

Canonical Name: Standex-Meder Electronics MK16-C-2 Molded Body Reed Switch

Subcategory: Magnetic Reed Switch

MK16-C-2 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MK16-C-2 Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MK16-C-2 Features

SPST-NO circuit configuration for reliable switching.
Surface mount with gull wing termination.
Rated for 200V and 500mA current.
Wide operating temperature range of -40°C to 130°C.
Low capacitance of 0.2 pF for signal integrity.

MK16-C-2 Applications

Suitable for automated surface mount assembly.
Ideal for general purpose switching applications.
Used in control systems requiring normally open contacts.
Applicable in environments with wide temperature variations.

MK16-C-2 FAQs

4 frequently asked questions generated from this part’s specifications.

What is the operating voltage for the MK16-C-2 reed switch?

The MK16-C-2 reed switch has an operating voltage of 200V.

What is the operating temperature range of the MK16-C-2 reed switch?

The MK16-C-2 reed switch operates between -40°C and 130°C.

What type of circuit does the MK16-C-2 reed switch have?

The MK16-C-2 reed switch features a SPST-NO (Single Pole Single Throw - Normally Open) circuit.

What are the dimensions of the MK16-C-2 reed switch?

The MK16-C-2 reed switch has dimensions of 11.60mm L x 2.30mm W x 2.30mm H.

Category	Magnetic, Reed Switches
Manufacturer Name	Standex-Meder Electronics
Capacitance	0.2 pF
Circuit	SPST-NO
Current	500mA (AC/DC)
Height	2.30mm (0.091")
Height Above Board	0.094" (2.40mm)
Length	15.60mm (0.614")
Mounting Type	Surface Mount
Operate Range	15 ~ 20 AT
Operate Time	0.6 ms
Operating Temperature	-40°C ~ 130°C
Power	10W
Release Time	0.05 ms
Termination Style	Gull Wing
Type	Molded Body Reed
Voltage	200 V
Width	2.30mm (0.091")
