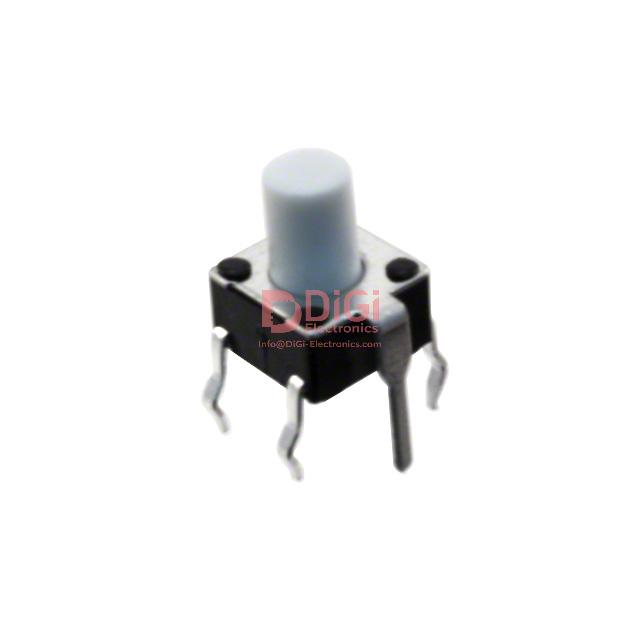

MJTP1232C The APEM Inc. MJTP1232C is a tactile switch featuring an SPST-NO circuit and a 0.05A @ 12VDC contact rating. It is designed for through-hole mounting.
Mfr Part #:

MJTP1232C

Available from 2 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. MJTP1232C is a tactile switch featuring an SPST-NO circuit and a 0.05A @ 12VDC contact rating. It is designed for through-hole mounting.
✓ Total Stock: 72,000 pcs
$ Price Range: $0.52

MJTP1232C Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
HMB Electronics LLC ✓
Non-Authorised Inventory information
43,000 pcs
On Request
43000 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
29,000 pcs
On Request
29000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MJTP1232C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Features
Illumination
Lead Style
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Termination Style
View Similar Products (0)

MJTP1232C Description

Short technical summary and product information.

The APEM Inc. MJTP1232C is a tactile switch with a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration. It is rated for 0.05A at 12VDC and features a standard actuator type with top actuation orientation. The switch is designed for through-hole mounting and has a PC pin termination style.



With a mechanical life of 100,000 cycles, the MJTP1232C offers tactile feedback and operates within a temperature range of -20°C to 70°C. Its outline dimensions are 6.00mm x 6.00mm, and the actuator height off the PCB is 8.00mm. This non-illuminated switch is suitable for various applications requiring reliable tactile switching.



The series designation for this component is MJTP. It is packaged in bulk and features a switch travel of 0.25mm. The operating force required is 160gf.

MJTP1232C Quick Information

Product Type: Tactile Switch
Series: MJTP
Canonical Name: APEM Inc. MJTP1232C Tactile Switch
Subcategory: Tactile

MJTP1232C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MJTP1232C Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

MJTP1232C Features

  • SPST-NO circuit configuration.
  • Rated for 0.05A at 12VDC.
  • Through-hole mounting with PC pin termination.
  • Provides tactile feedback.
  • 100,000 cycle mechanical life.

MJTP1232C Applications

  • Suitable for general electronic controls.
  • Ideal for user interface applications.
  • Used in compact device designs.
  • Reliable for repetitive switching tasks.

MJTP1232C FAQs

5 frequently asked questions generated from this part’s specifications.
What is the circuit configuration of the MJTP1232C tactile switch?

The MJTP1232C has an SPST-NO circuit configuration.

What is the contact rating for the APEM Inc. MJTP1232C?

The contact rating is 0.05A at 12VDC.

How is the MJTP1232C switch mounted?

The MJTP1232C switch is designed for through-hole mounting.

What is the operating temperature range for this tactile switch?

The operating temperature range is -20°C to 70°C.

What is the mechanical life of the MJTP1232C?

The mechanical life is 100,000 cycles.
