| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

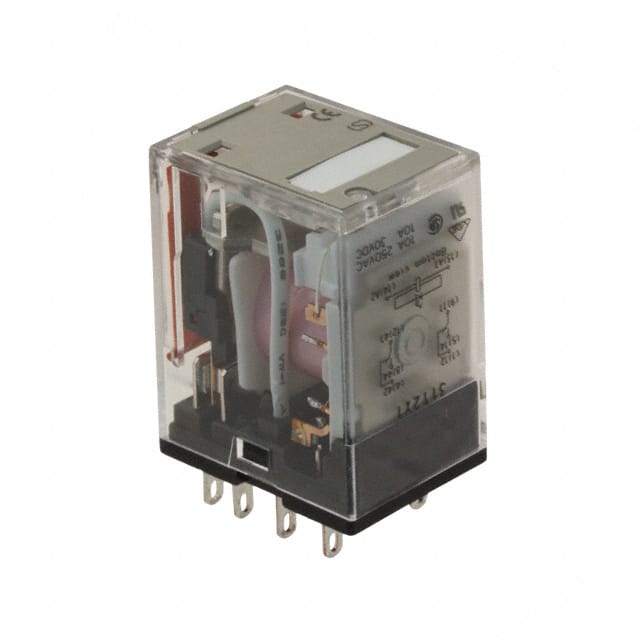

The Omron MJN2CK-DC110 is a general purpose relay designed for various applications. It features a DPDT (2 Form C) contact configuration, capable of handling a current rating of 10A. The relay operates with a coil voltage of 110VDC and has a must-operate voltage of 82.5 VDC.
This relay offers an operate time of 20 ms and a release time of 10 ms. Its switching voltage capabilities include up to 600VAC and 28VDC maximum. The operating temperature range is from -45°C to 70°C.
Designed for socketable mounting, the MJN2CK-DC110 utilizes plug-in termination with 0.187" (4.7mm) quick connect terminals. The contact material is silver alloy, ensuring reliable performance. It is also RoHS3 compliant, has an MSL of 1, and is REACH unaffected, though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 110VDC.
The contact rating is 10A.
It has a DPDT (2 Form C) contact form.
The operating temperature range is -45°C to 70°C.
It is socketable.
