| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

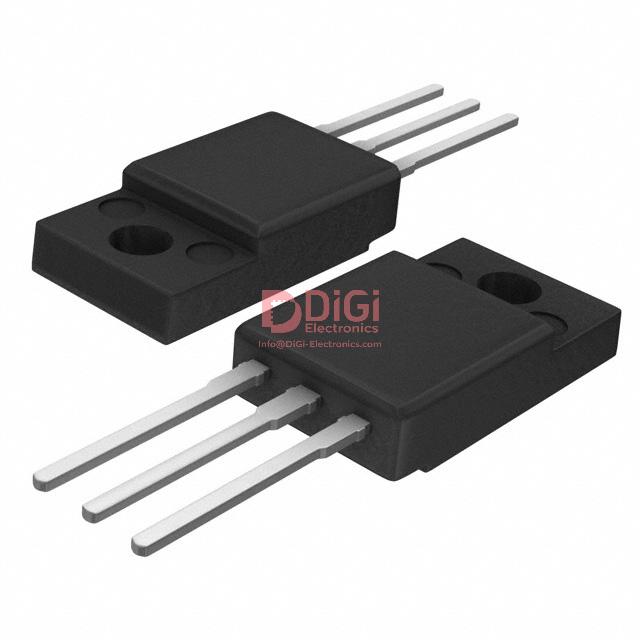

The MJF15030 is an NPN power transistor manufactured by ON Semiconductor, designed for general-purpose amplifier and switching applications. It offers a collector-emitter voltage of 150V and a continuous collector current of 8A, with a maximum power dissipation of 2W.
This transistor is housed in a TO-220FP package, suitable for through-hole mounting. Key electrical characteristics include a minimum DC current gain (hFE) of 20 at 4A and 2V, and a Vce saturation of 500mV at 100mA and 1A. The transition frequency is 30MHz.
Operating temperature ranges from -65°C to 150°C. The device is electrically similar to the MJE15030 and MJE15031, offering reduced system cost by not requiring isolating washers. It is also UL recognized for isolation up to 3500 VRMS.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (VCEO) for the MJF15030 is 150 Vdc.
The MJF15030 can handle a continuous collector current (IC) of 8 Adc.
The maximum power dissipation (PD) for the MJF15030 is 2 W.
The MJF15030 transistor operates between -65°C and 150°C (TJ).
The MJF15030 is listed as RoHS3 Compliant.
