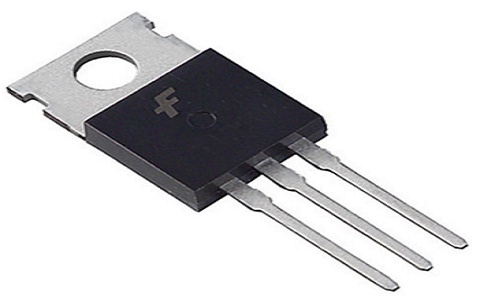

The MJE13005 is an NPN silicon power transistor manufactured by Multicomp Pro, designed for high-speed and high-voltage switching circuits. It is particularly suitable for switch-mode applications operating at 115V and 220V, including inverters, switching regulators, and motor control circuits.
Key electrical specifications include a maximum collector-emitter voltage (VCEO) of 400V and a continuous collector current (IC) of 4A. The device also offers a pulse collector current (ICP) of 8A and a maximum collector dissipation (PC) of 75W at 25°C case temperature. Its DC current gain (hFE) is typically 60 at 1A and 40 at 2A collector current.
With a typical turn-on time of 0.8µs and fall time of 0.9µs, the MJE13005 is optimized for fast switching performance. The transistor is housed in a TO-220 package, designed for through-hole mounting.
This transistor is also suitable for applications such as relay drivers, solenoid control, and audio amplifier circuits due to its power dissipation capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MJE13005 comes in a TO-220 package.
The maximum collector-emitter voltage (VCEO) is 400V.
The maximum DC collector current is 4A, with a pulse current of 8A.
The typical DC current gain is 60 at VCE=5V, IC=1A, and 40 at IC=2A.
The maximum VCE(sat) is 0.5V at IC=1A, IB=0.2A; 0.6V at IC=2A, IB=0.5A; and 1V at IC=4A, IB=1A.
Typical turn-on time is 0.8µs, storage time 4µs, and fall time 0.9µs.
The maximum junction temperature is 150°C.
