| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Power Dissipation |

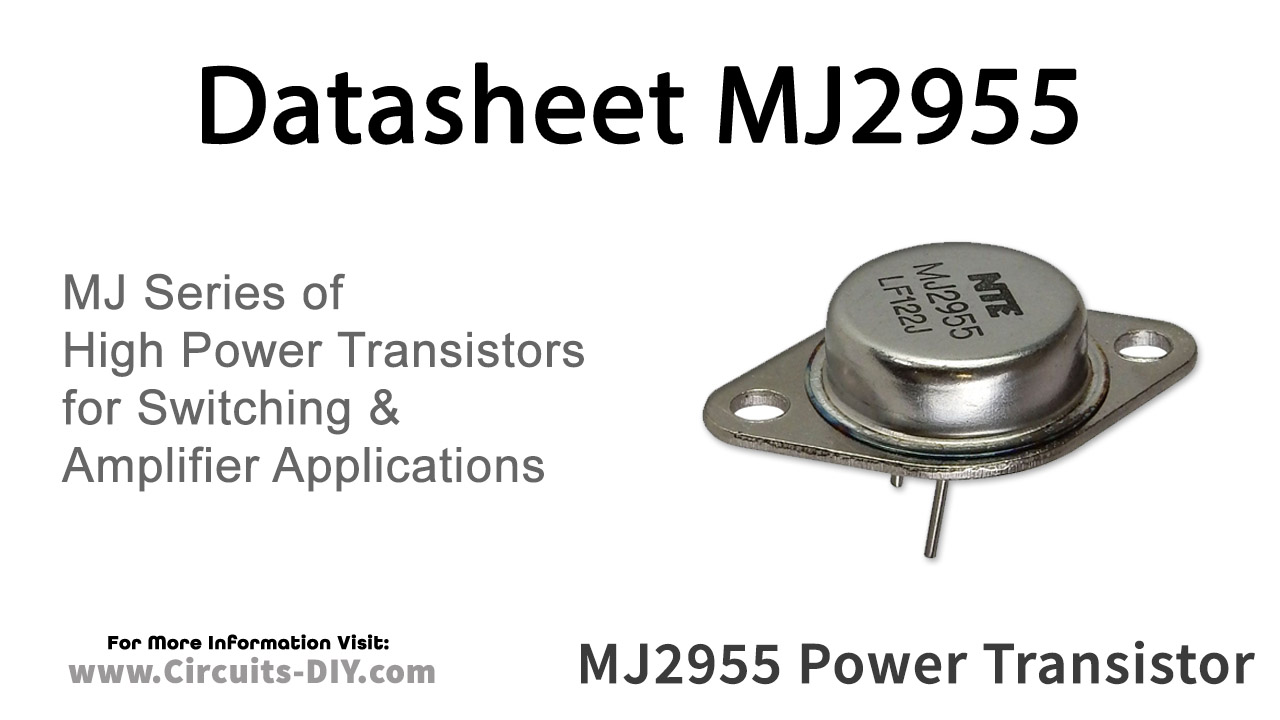

The MJ2955 is a PNP power transistor from Central Technologies, manufactured using epitaxial-base planar technology. It is designed for general-purpose audio, power linear, and switching applications.
Key electrical specifications include a DC Current Gain (hFE) ranging from 20 to 70 at an IC of 4 Adc, and a maximum Collector-Emitter Saturation Voltage (VCE(sat)) of 1.1 Vdc at 4 Adc. The transistor has a maximum Collector Current (Ic) of 15A, a maximum Collector-Emitter Voltage (Vce(max)) of 60V, and a maximum Collector-Base Voltage (Vcb) of 100V. Its transition frequency (Ft) is typically 5 MHz.
This transistor is suitable for use in audio amplifier circuits and other power applications. The material is Silicon (Si).
While specific packaging details like standard quantity are not fully verified, it is typically found in a TO-3 through-hole package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.11 | $0.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DC current gain (hFE) is 20 to 70 at a collector current of 4 A.
The maximum collector-emitter voltage (Vce) is 60 V.
The collector current rating is 15 A.
The power dissipation is 150 W.
The MJ2955 is available in a TO-3 package with through-hole mounting.
The transition frequency (Ft) is 5 MHz.
The collector-emitter saturation voltage (VCE(sat)) is 1.1 V maximum at a collector current of 4 A.
