Mfr Part #:

MJ-2503A

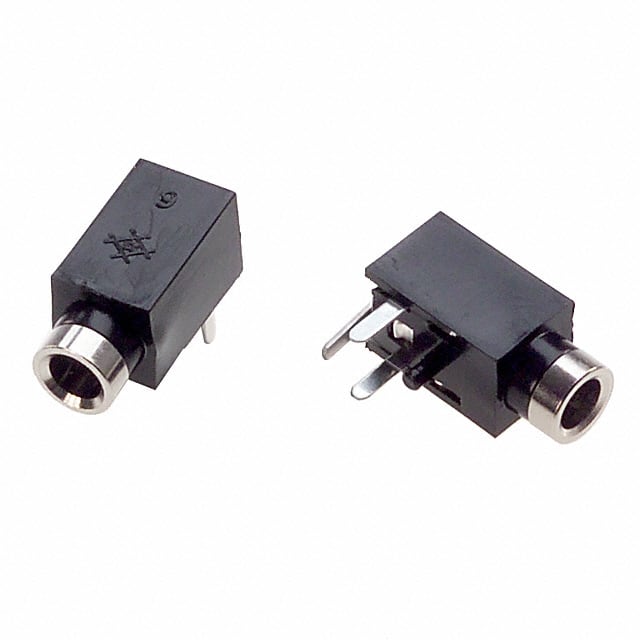

Name: MJ-2503A
Brand: CUI Devices
SKU: MJ-2503A

Mfr Name: CUI Devices

Description:

CONN JACK MONO 2.5MM R/A

Stock on Request

MJ-2503A Description

Short technical summary and product information.

CONN JACK MONO 2.5MM R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Audio Connectors
Manufacturer Name	CUI Devices
Actual Diameter	0.102" (2.60mm)
Connector Type	Phone Jack
Gender	Female
Industry Recognized Mating Diameter	2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Internal Switch(s)	Does Not Contain Switch
Mounting Type	Through Hole, Right Angle
Number of Positions	3 Conductors, 3 Contacts
Operating Temperature	-25°C ~ 85°C
Shielding	Unshielded
Signal Lines	Stereo (3 Conductor, TRS)
Termination	Solder
