Mfr Part #:

MIXA20WB1200TED

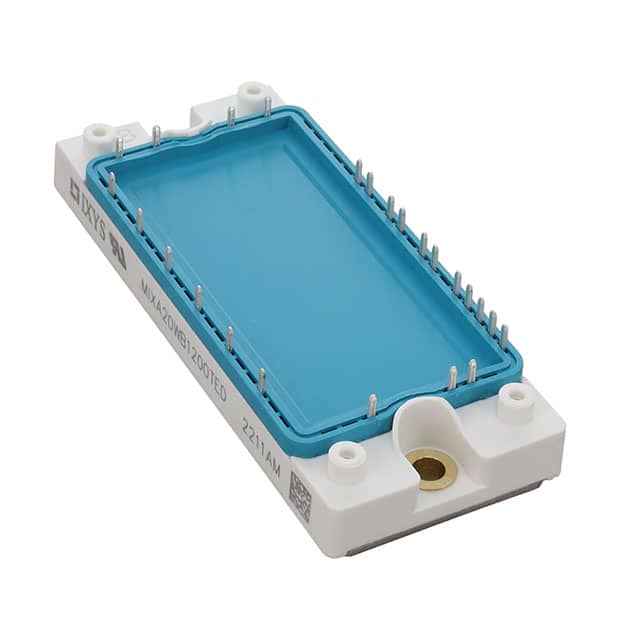

Name: MIXA20WB1200TED
Brand: IXYS
SKU: MIXA20WB1200TED

Mfr Name: IXYS

Description:

IGBT MODULE 1200V 28A 100W E2

Stock on Request

MIXA20WB1200TED Description

Short technical summary and product information.

IGBT MODULE 1200V 28A 100W E2

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - IGBTs - Modules
Manufacturer Name	IXYS
Configuration	Three Phase Inverter with Brake
Current	28 A
IGBT Type	PT
Input	Three Phase Bridge Rectifier
Mounting Type	Chassis Mount
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Power	100 W
Supplier Device Package	E2
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 16A
Voltage	1200 V
