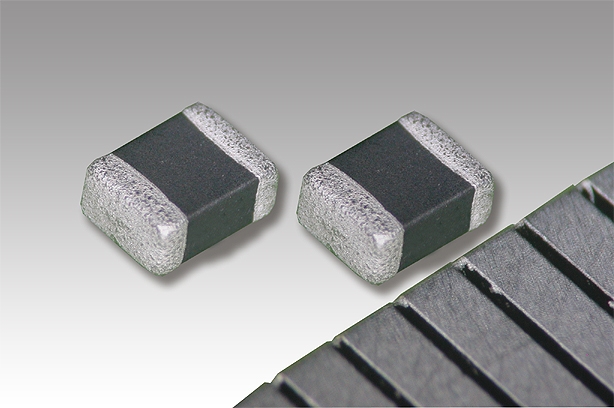

The FDK MIPF2016D2R2 is a highly compact multilayer power chip inductor from the MIPF2016 series, developed by FDK Corporation. This series is notable for being the world's smallest multilayer power chip inductors, achieving a 40% volume reduction compared to the previous MIPF2025 series while maintaining equivalent high performance.
Designed for modern compact electronics such as cellular phones, which increasingly require smaller components due to added functionalities like high-definition cameras and GPS, the MIPF2016D2R2 is ideal for converter circuits. It features an inductance of 2.2µH with a typical DC resistance of 0.11Ω and a rated current of up to 1.1A. The physical dimensions are a maximum of 2.0mm x 1.6mm x 1.0mm, with a weight of only 15mg.
This inductor utilizes a new inner structure and low-temperature sintering technology, making it suitable for space-constrained applications where efficiency and miniaturization are critical. Its development addresses the growing need for smaller power inductors in mobile devices and other portable electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical inductance values for the FDK MIPF2016D2R2 are 2.2 µH and 4.7 µH.
The typical DC Resistance values for the FDK MIPF2016D2R2 are 0.11 Ω and 0.16 Ω.
The rated current for the FDK MIPF2016D2R2 is up to 1.1 A.
The maximum dimensions of the FDK MIPF2016D2R2 are 2.0 x 1.6 x 1.0 mm.
The typical weight of the FDK MIPF2016D2R2 is 15 mg.
The mounting type for the FDK MIPF2016D2R2 is Surface Mount.
