Mfr Part #:

MIP50R12E2ATN-BP

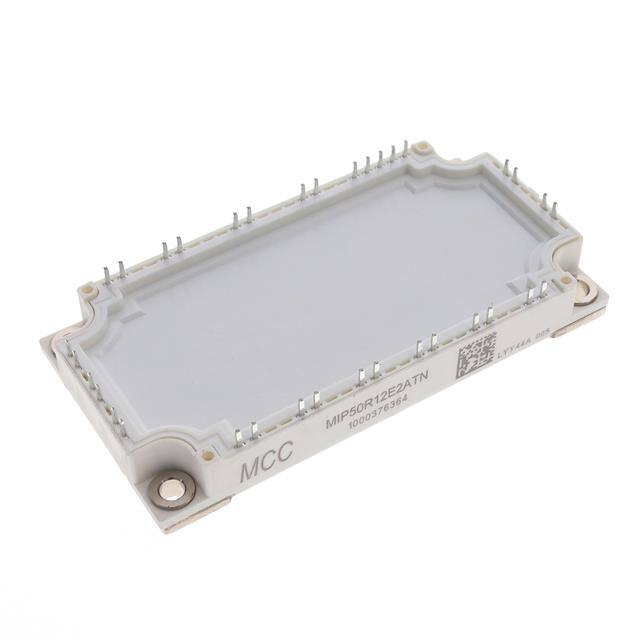

Name: MIP50R12E2ATN-BP
Brand: Micro Commercial Co.
SKU: MIP50R12E2ATN-BP

Description:

IGBT MODULES 1200V 50A, E2A

Stock on Request

MIP50R12E2ATN-BP Description

Short technical summary and product information.

IGBT MODULES 1200V 50A, E2A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - IGBTs - Modules
Manufacturer Name	Micro Commercial Co.
Configuration	Three Phase Inverter
Current	50 A
Input	Three Phase Bridge Rectifier
Input Capacitance (Cies) @ Vce	2600 pF @ 25 V
Mounting Type	Chassis Mount
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Power	288 W
Supplier Device Package	E2A
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 50A
Voltage	1200 V
