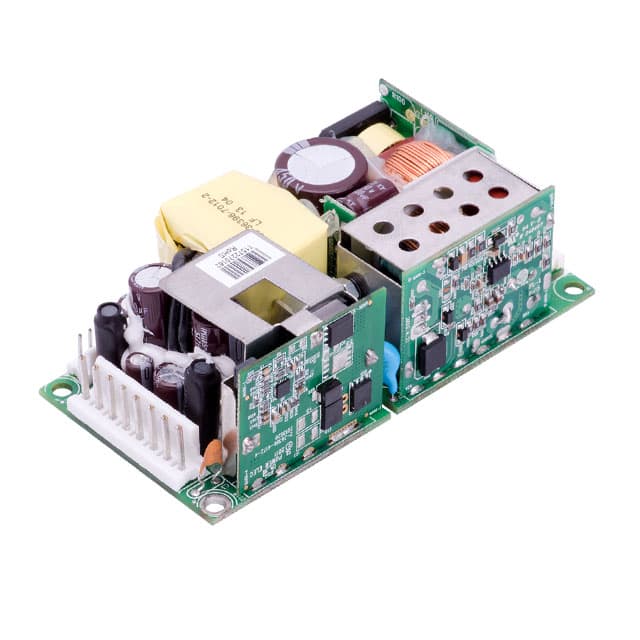

The SL Power MINT3110A0508K01 is part of the MINT3110 series of open-frame AC-DC power supplies from Advanced Energy. This triple output model is designed for medical applications, featuring medical safety approvals and a universal input range of 90 to 264 VAC.
This power supply delivers 80 Watts of output power with free air convection cooling and can provide up to 110 Watts with 200 LFM of forced air. It includes output overvoltage, overload, and short-circuit protection on all outputs. The unit is housed in a compact 2" x 4" x 1.3" package, making it suitable for 1U applications.
Key electrical specifications include an efficiency of 87% typical, input fuses, and low leakage current. It offers 2 x MOPP isolation and features like a power fail signal and remote sense on V2. The operating temperature range is -10°C to 70°C with derating.
The input voltage range is 90-264 VAC (120-370 VDC).
The converter provides 5V and +/-12V outputs with 80W convection cooled, or 110W with 200 LFM airflow.
The operating temperature range is -10°C to 70°C with derating.
The package size is 2" x 4" x 1.3" (101.6mm x 50.8mm x 33.0mm) and it is chassis mount.
It provides 4000 VAC reinforced isolation between input and output, 1800 VAC basic between input and ground, and 500 VAC operational between output and ground. It also meets 2 x MOPP isolation.
Short circuit protection is hiccup mode, overload protection is 110%-200% for V1 and 150%-300% for V2/V3 (hiccup mode), and overvoltage protection is latching type requiring AC recycle to reset.
Yes, remote sense is available on the V2 output and will compensate for up to 0.5V drop.
