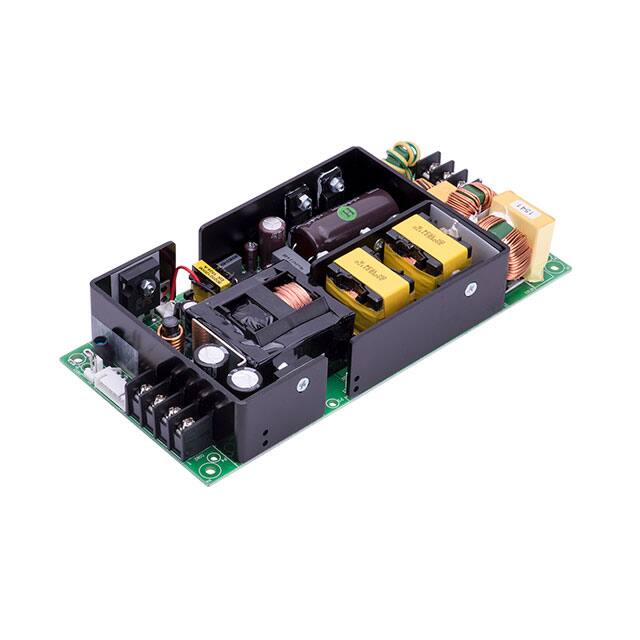

The SL Power MINT2270A1976E01 is a medical-grade AC-DC power supply from the MINT2270 series, delivering up to 270 Watts of convection-cooled output power. It operates with a universal input voltage range of 90 to 264 VAC and features dual outputs, including a 24V output.
Key electrical specifications include up to 90% typical efficiency, 1500 VAC input-to-ground isolation, and 4000 VAC input-to-output isolation. The unit supports features such as Remote On/Off and provides AC OK and DC OK signals. It is designed with overvoltage, overload, and overtemperature protection.
Mechanically, this open-frame converter has dimensions of 7.17" x 3.35" x 1.17" and is suitable for chassis mounting. The operating temperature range is from 0°C to 70°C with derating. Compliance includes CE, cURus, and DEMKO certifications, along with EMI/EMC standards like EN55011 Class B and FCC Part 15 Class B.
This power supply is ideal for medical equipment requiring reliable and efficient power conversion. Its robust design and safety approvals make it suitable for demanding applications.
90 to 264 VAC.
5V and 24V.
270W.
0°C to 70°C with derating.
Convection cooling.
Overvoltage (latching), overload (hiccup), short circuit (hiccup), and overtemperature (auto-recovery).
182.0 mm x 85.0 mm x 29.6 mm.
