| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Relative Humidity | |
| Storage Temperature | |
| Turn On Time | |
| Type | |
| Voltage | |
| Width |

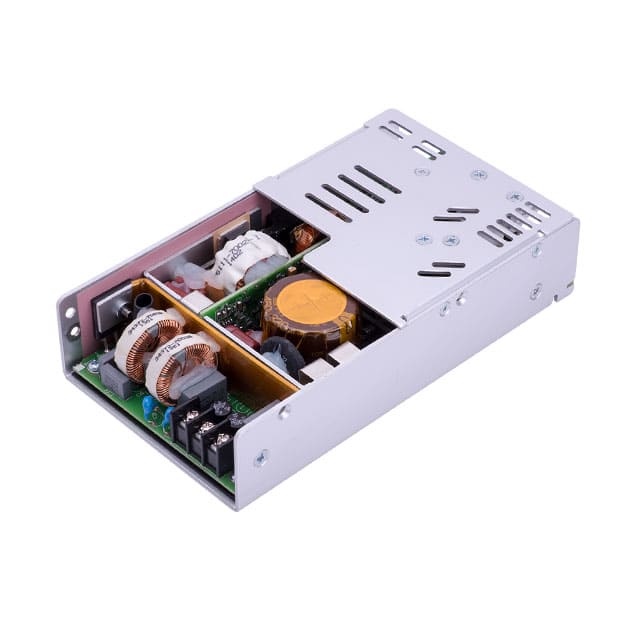

The SL Power Electronics MINT1400A2410L01 is a versatile AC DC power supply designed for various applications, including medical and ITE. This open-frame unit offers a nominal output power of 250W, with the capability to reach 400W with fan cooling. It accepts a wide AC input range of 85-270VAC and provides a regulated output with adjustable voltage.
Key electrical specifications include a typical efficiency of 88% at 120VAC and 91% at 240VAC, a power factor of 0.99 typical, and a hold-up time of 20 ms at 400W. The unit is designed for reliable operation within an ambient temperature range of 0°C to 70°C, with derating applied for temperatures above 40°C. Safety standards include EN/IEC/UL 60601-1 and CSA 601.1 for medical applications, and CSA/EN/IEC/UL 60950-1 for ITE.
Mechanically, the MINT1400A2410L01 features a compact open-frame construction suitable for chassis mounting. Its dimensions are 177.8mm x 100.0mm x 40.0mm (7.00" x 3.94" x 1.57"). The power supply also includes features such as remote ON/OFF, remote sense, and standby output for enhanced control and integration into system designs.
The MINT1400A2410L01 provides 250W of continuous output power, with a capability of 400W with fan cooling.
This AC DC converter accepts a universal input voltage range of 85-270VAC.
The typical efficiency is 88% at 120VAC and 91% at 240VAC.
The operating temperature range is 0°C to 70°C, with derating required for temperatures above 40°C.
It meets medical safety standards EN/IEC/UL 60601-1 and CSA 601.1, and ITE standards CSA/EN/IEC/UL 60950-1, 2nd Edition.
