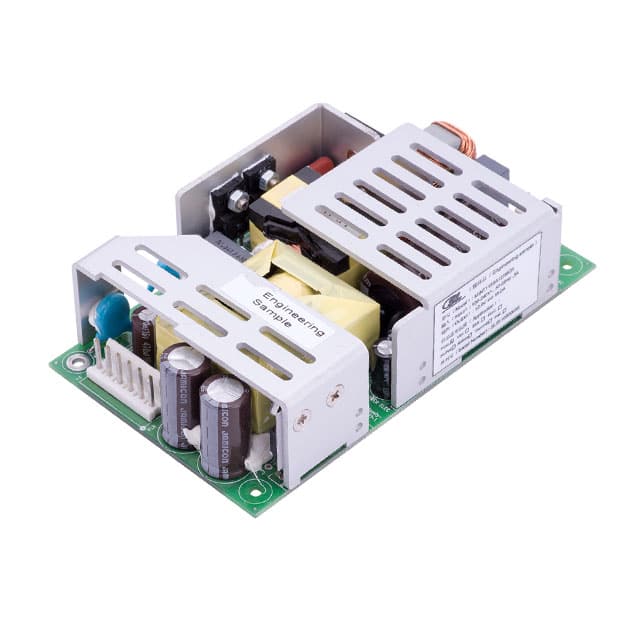

The SL Power Electronics MINT1180A3275K01 is a high-power-density AC/DC converter designed for demanding applications. This open-frame unit provides 180W of convection-cooled power with a single 32V output capable of delivering 5.62A.
It features a universal input voltage range of 90 to 264 VAC, making it suitable for global use. The converter operates within a temperature range of -10°C to 70°C with derating and offers an efficiency of up to 90% typical.
Designed for medical applications, it meets stringent safety standards and provides 4000 VAC input-to-output isolation (2 x MOPP). The compact dimensions of 5.00" x 3.00" x 1.30" (127.0mm x 76.2mm x 31.8mm) and chassis mount type facilitate integration into various systems, including 1U applications.
Key electrical specifications include overcurrent, overvoltage, and overtemperature protection. The MINT1180 series is RoHS compliant and designed for reliability, with a typical MTBF of 214,194 hours.
90 to 264 VAC.
32V at 5.62A.
180W.
90% typical.
-10°C to 70°C with derating.
127.0mm x 76.2mm x 31.8mm, chassis mount open frame.
Short circuit, overload (120-140% hiccup), overvoltage (latching), and overtemperature (auto-shutdown at 135°C).
