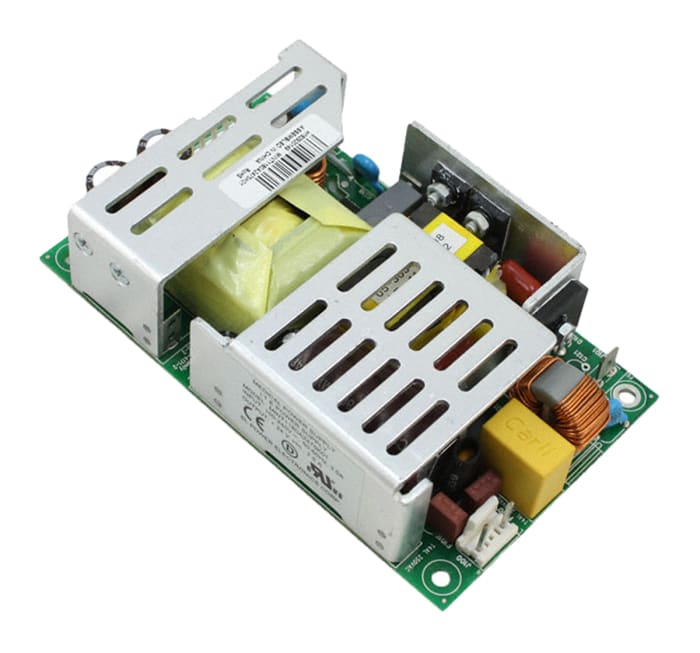

The SL Power / Advanced Energy MINT1180A2475K01 is a 180W open-frame AC/DC power supply designed for medical applications. It provides a single 24V dc output at 7.5A, operating with a universal input range of 100V ac to 240V ac.
This switching power supply boasts an efficiency of 90% and is designed for chassis mounting. Its dimensions are 127.0mm x 76.2mm x 31.8mm. The operating temperature range is -10°C to 70°C with derating.
Key features include universal input and compliance with standards such as CSA/EN/IEC/UL 60601-1 and UL 60950-1. The MINT1180A series is suitable for applications where fans are not desired, such as home care.
It is RoHS3 compliant and has an MSL rating of 1.
The MINT1180A2475K01 provides a 24V dc output at 7.5A.
This switching power supply has a power rating of 180W.
The input voltage range is 100V ac to 240V ac.
The operating temperature range is -10°C to 70°C, with derating.
It is designed for chassis mounting.
The dimensions are 127.0mm x 76.2mm x 31.8mm.
It complies with CSA/EN/IEC/UL 60601-1 and UL 60950-1 standards.
