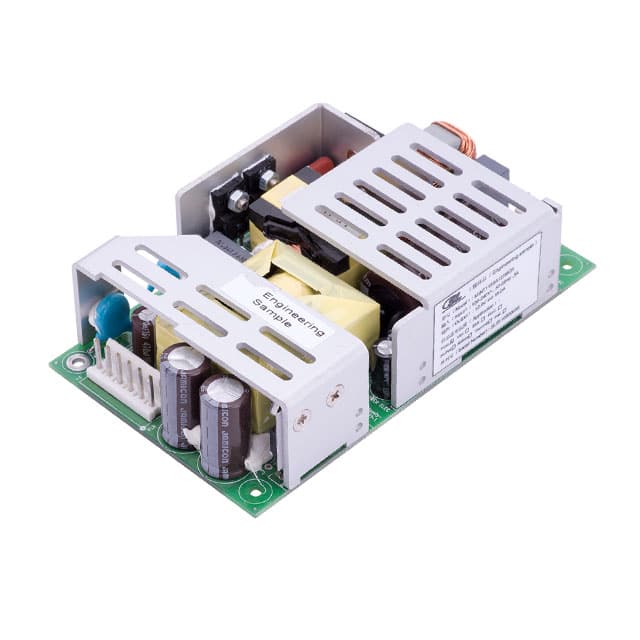

The SL Power MINT1180 series, represented by the MINT1180A1275K01 part number, is a high-power-density AC DC converter designed for demanding applications. This open frame unit delivers 180W of convection-cooled power with a single 12V output and a 15A current rating.
Designed for universal input, it accepts a wide voltage range of 90 to 264 VAC, making it suitable for global use. Key electrical specifications include an efficiency of up to 90% typical and an isolation voltage of 4000 VAC (2 x MOPP), satisfying medical grade requirements.
The MINT1180A1275K01 operates within a temperature range of -10°C to +70°C with derating. Its compact dimensions of 5.00" x 3.00" x 1.30" (127.0mm x 76.2mm x 31.8mm) and chassis mount type make it ideal for 1U applications and integration into various medical devices.
This converter is approved to safety standards including EN/IEC/UL/CSA 60601-1, 3rd edition, and 62368-1, and carries a CE mark. It includes comprehensive protection features such as short circuit, overload, overvoltage, and overtemperature protection.
The MINT1180A1275K01 provides a 12V output voltage with a maximum current of 15A.
The input voltage range is 90 to 264 VAC.
The MINT1180A1275K01 has a maximum power output of 180 Watts.
The operating temperature range is -10°C to +70°C.
The package dimensions are 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 31.8mm).
Yes, it is approved to EN/IEC/UL/CSA 60601-1, 3rd edition, with isolation levels satisfying 2x MOPP requirements.
