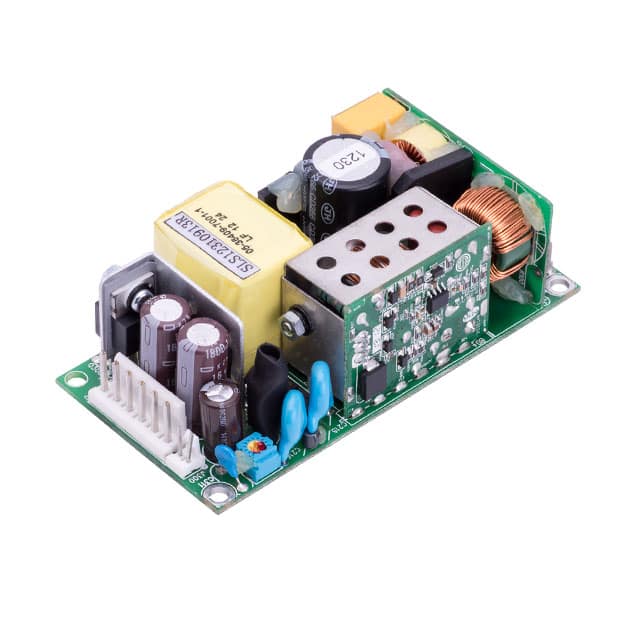

The SL Power MINT1150A4806K01 is a high power density AC DC converter from the MINT1150 series, housed in a compact 2"x4"x1.3" package. This medical-grade power supply delivers up to 150W with forced air or 100W convection cooled, operating from a universal input voltage range of 90 to 264 VAC.
Key electrical specifications include a 48VDC output voltage, 2.08A output current, and 89% typical efficiency. The converter is designed for chassis mounting and features an open frame construction. It meets stringent medical safety standards, including EN/IEC/UL 60601-1, 3rd edition, with 2x MOPP isolation levels.
Additional features include adjustable output, DC input capability, Power Factor Correction (PFC), Power Fail signal, and DC OK signal. The operating temperature range is -10°C to 70°C with derating, delivering full rated power up to 50°C. Protection features include short circuit, overload, overvoltage, and overtemperature protection. This series comes with a 3-year warranty and is RoHS3 compliant.
90 to 264 VAC.
48 VDC at 2.08 A.
100 W convection cooled, 150 W with 200 LFM forced air.
89%.
-10°C to +70°C with derating; full rated output up to +50°C.
2 x 4 x 1.3 inches (101.6 x 50.8 x 33.0 mm), chassis mount open frame.
Short circuit and overload protection (hiccup mode), overvoltage protection (latching), and overtemperature protection (automatic shutdown).
