| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Overload Protection | |
| Power (Watts) | |
| Relative Humidity | |
| Storage Temperature | |
| Turn On Time | |
| Type | |
| Voltage | |
| Width |

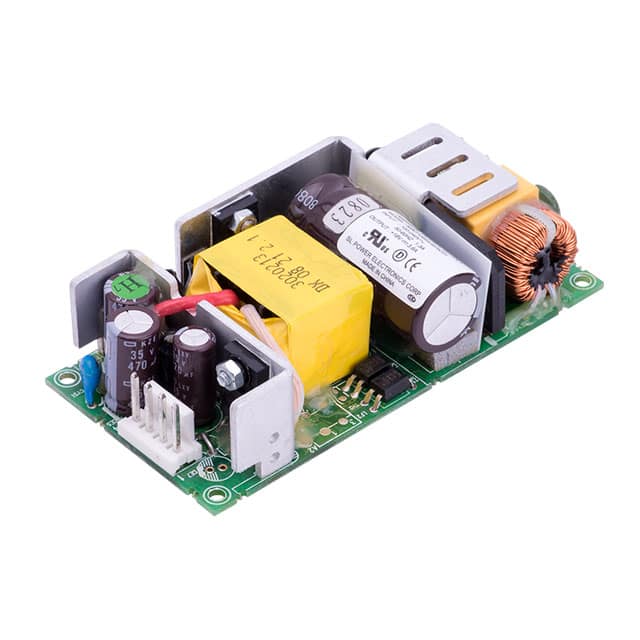

The SL Power Electronics MINT1065D1275K01 is a 65W single output AC/DC power supply designed for medical applications. It operates with a universal input voltage range of 90-264 VAC and features convection cooling. The unit provides a 12V output with a maximum continuous current of 5.25A.
Key electrical specifications include up to 90% typical efficiency, hiccup mode for overload and short circuit protection, and built-in overvoltage protection. The isolation rating is 4000Vac between input and output, and 1500Vac between input and ground. It meets medical safety standards including ANSI AAMI ES/CSA/EN/IEC 60601-1, 3rd Edition.
This power supply has a compact footprint measuring 4.00" L x 2.00" W x 1.17" H (101.6mm x 50.8mm x 29.7mm) and is designed for chassis mounting. The operating temperature range is 0°C to 70°C, with derating required above 40°C. Storage temperature ranges from -40°C to +85°C.
The nominal output voltage is 12V with a maximum output current of 5.25A and typical output current of 4.00A.
The AC input voltage range is 100-240VAC at 47-63Hz.
The operating temperature range is 0°C to 70°C with derating from full rated power above 40°C.
It meets medical safety standards ANSI AAMI ES/CSA/EN/IEC 60601-1 3rd Edition.
Typical efficiency is up to 90%.
The dimensions are 101.6mm (length) x 50.8mm (width) x 29.7mm (height).
