| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
739 pcs
|
739 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
235 pcs
|
235 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Halogen Free | |
| Hold Current | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Resistance | |
| Storage Temperature | |
| Tape & Reel | |
| Thickness | |
| Thickness (Max) | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width |

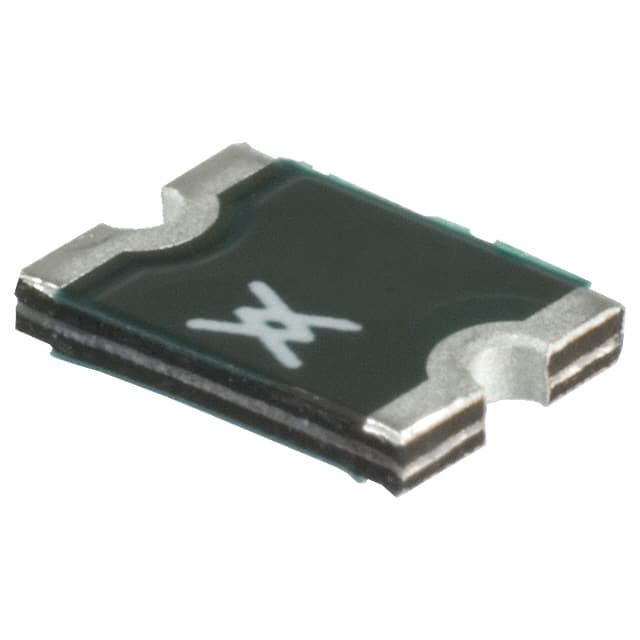

The Littelfuse Inc. MINISMDC150F/24-2 is a Polymeric PTC Resettable Fuse designed for overcurrent protection in applications where space is limited. It operates at a maximum voltage of 24V and has a hold current of 1.5A.
This fuse offers a low resistance of 0.12 Ohms and a fast time to trip of 1.5 seconds, ensuring quick response to fault conditions. The operating temperature range is from -40°C to 85°C.
With its compact 1812 surface mount package, the MINISMDC150F/24-2 is suitable for integration into various electronic devices. It is recognized by UL 1434 and conforms to IEC 60730-1 standards, indicating its suitability for safety-critical applications.
Key applications include mobile electronics, batteries, computers, portable devices, multimedia equipment, game machines, telephones, broadband systems, automotive components, and industrial controls.
The voltage rating is 24V.
The hold current is 1.5A.
The resistance is 0.12 Ohms.
The time to trip is 1.5 seconds.
The operating temperature range is -40°C to 85°C.
The part is available in an 1812 package size.
It is recognized to UL 1434 and conforms to IEC 60730-1.
