| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
262 pcs
|
262 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Resistance | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width |

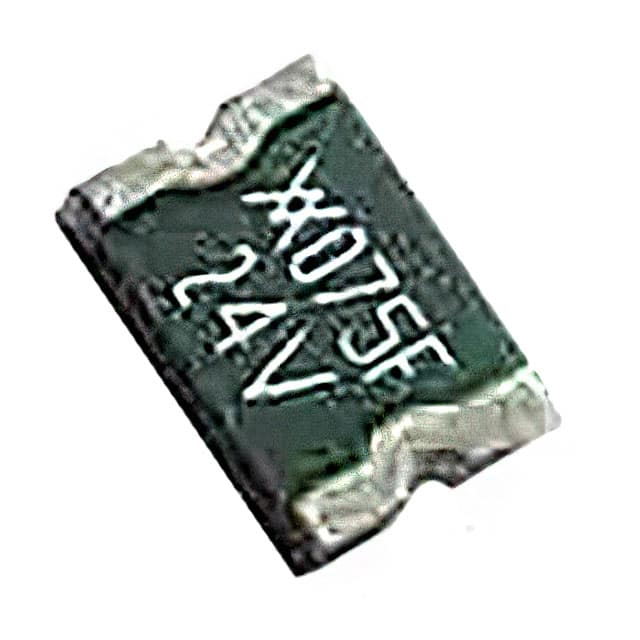

The MINISMDC075F/33-2 is a polymeric PTC resettable fuse from Littelfuse. It has a hold current of 750 mA and a maximum voltage of 33V. Typical initial resistance is 390 mΩ and time to trip is 1 second.
This surface mount component is housed in a 1812 (4532 Metric) package measuring 4.60mm x 3.24mm x 1.46mm. It operates over a temperature range of -40°C to 85°C.
PTC resettable fuses provide overcurrent protection and automatically reset after the fault is cleared. This component is suitable for use in various electronic circuits requiring resettable protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.68 | $0.68 |
| 10+ | $0.62 | $0.62 |
| 50+ | $0.52 | $0.52 |
| 100+ | $0.48 | $0.48 |
| 250+ | $0.43 | $0.43 |
| 500+ | $0.40 | $0.40 |
| 1,500+ | $0.30 | $0.30 |
| 3,000+ | $0.27 | $0.27 |
| 4,500+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current is 750 mA typical at 25°C.
The maximum voltage is 33V.
The typical time to trip is 1 second.
The package is 1812 (4532 Metric) surface mount.
The operating temperature range is -40°C to 85°C.
The typical initial resistance is 390 mΩ at 25°C.
Yes, it is RoHS3 compliant.
